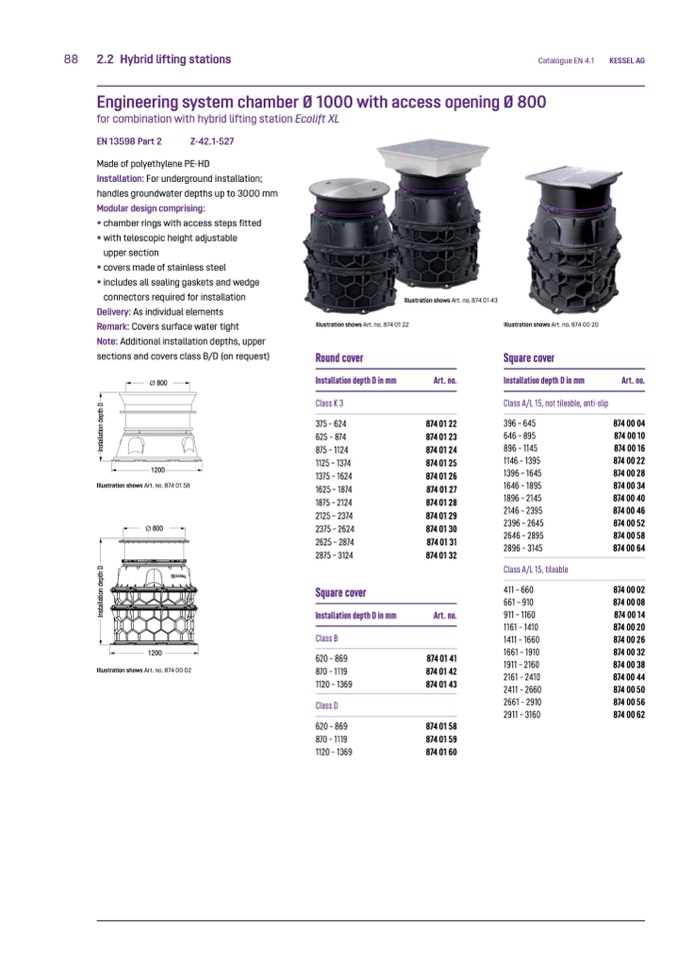

Engineering system chamber Ø 1000 with access opening Ø 800
KESSEL AG
for combination with hybrid lifting station Ecolift XL
EN 13598 Part 2
Z-42.1-527
Made of polyethylene PE-HD
Installation: For underground installation;
handles groundwater depths up to 3000 mm
Modular design comprising:
• chamber rings with access steps fitted
• with telescopic height adjustable
upper section
• covers made of stainless steel
• includes all sealing gaskets and wedge
connectors required for installation
Delivery: As individual elements
Remark: Covers surface water tight
Note: Additional installation depths, upper
sections and covers class B/D (on request)
Ø 800
1200
Illustration shows Art. no. 874 01 58
Ø 800
1200
Illustration shows Art. no. 874 00 02
Illustration shows Art. no. 874 01 43
Illustration shows Art. no. 874 01 22
Illustration shows Art. no. 874 00 20
Square cover
Installation depth D in mm
Class A/L 15, not tileable, anti-slip
396–645
646–895
8740010
Round cover
Installation depth D in mm
Class K 3
375–624
625–874
875 – 1124
1125 – 1374
1375 – 1624
1625 – 1874
1875–2124
2125–2374
2375 – 2624
2625–2874
8740131
Art. no.
874 00 16
874 00 22
874 00 28
874 00 34
8740040
8740046
874 00 52
8740058
8740064
874 00 02
874 00 08
874 00 14
874 00 20
874 00 26
874 00 32
874 00 38
8740044
874 00 50
874 00 56
874 00 62
2875–3124
Square cover
Installation depth D in mm
Class B
620 – 869
870 – 1119
1120–1369
Class D
620 – 869
870 – 1119
1120 – 1369
8740132
Art. no.
874 01 41
874 01 42
8740143
874 01 58
874 01 59
874 01 60
896 – 1145
1146 – 1395
1396 – 1645
1646 – 1895
1896–2145
2146–2395
2396 – 2645
2646–2895
2896–3145
Class A/L 15, tileable
411 – 660
661 – 910
911 – 1160
1161 – 1410
1411 – 1660
1661 – 1910
1911 – 2160
2161–2410
2411 – 2660
2661 – 2910
2911 – 3160
Art. no.
8740122
8740123
874 01 24
874 01 25
874 01 26
874 01 27
8740128
8740129
874 01 30
