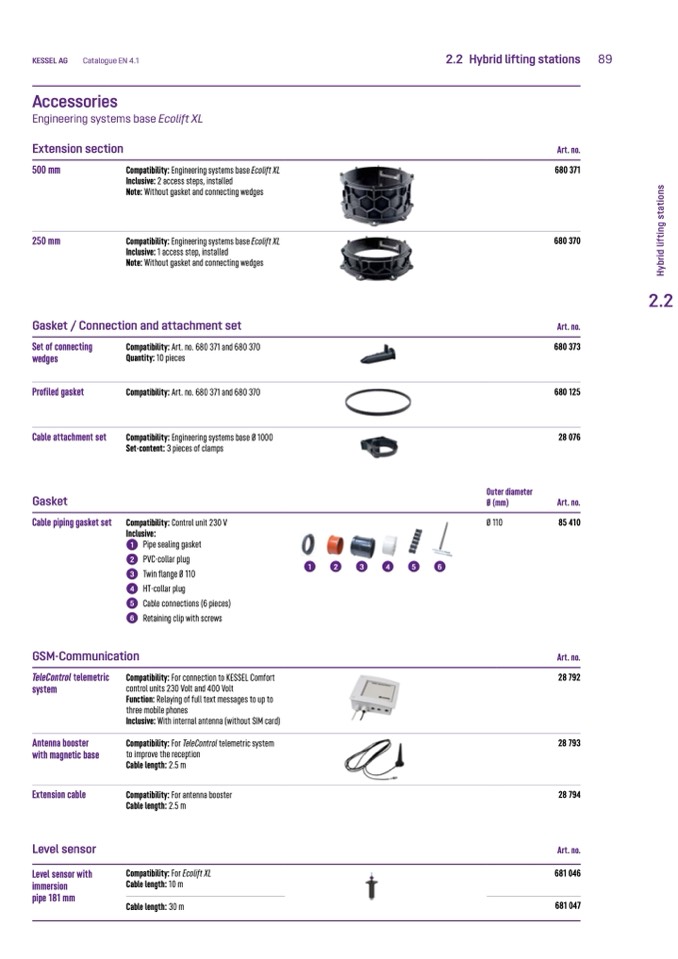

KESSEL AG

Catalogue EN 4.1

2.2

Hybrid lifting stations 89

Accessories

Engineering systems base Ecolift XL

Extension section

Art. no.

680 371

680 370

Art. no.

680 373

680 125

28 076

Art. no.

85 410

Art. no.

28 792

28 793

28 794

Art. no.

681 046

681 047

500 mm

250 mm

Compatibility: Engineering systems base Ecolift XL

Inclusive: 2 access steps, installed

Note: Without gasket and connecting wedges

Compatibility: Engineering systems base Ecolift XL

Inclusive: 1 access step, installed

Note: Without gasket and connecting wedges

Gasket / Connection and attachment set

Set of connecting

wedges

Profiled gasket

Cable attachment set

Gasket

Cable piping gasket set

Compatibility: Art. no. 680 371 and 680 370

Quantity: 10 pieces

Compatibility: Art. no. 680 371 and 680 370

Compatibility: Engineering systems base Ø 1000

Set-content: 3 pieces of clamps

Compatibility: Control unit 230 V

Inclusive:

1 Pipe sealing gasket

2 PVC-collar plug

3 Twin flange Ø 110

4 HT-collar plug

5 Cable connections (6 pieces)

6 Retaining clip with screws

Outer diameter

Ø (mm)

Ø 110

1

2

3

4

5

6

GSM-Communication

TeleControl telemetric

system

Antenna booster

with magnetic base

Extension cable

Level sensor

Level sensor with

immersion

pipe 181 mm

Compatibility: For connection to KESSEL Comfort

control units 230 Volt and 400 Volt

Function: Relaying of full text messages to up to

three mobile phones

Inclusive: With internal antenna (without SIM card)

Compatibility: For TeleControl telemetric system

to improve the reception

Cable length: 2.5 m

Compatibility: For antenna booster

Cable length: 2.5 m

Compatibility: For Ecolift XL

Cable length: 10 m

Cable length: 30 m
