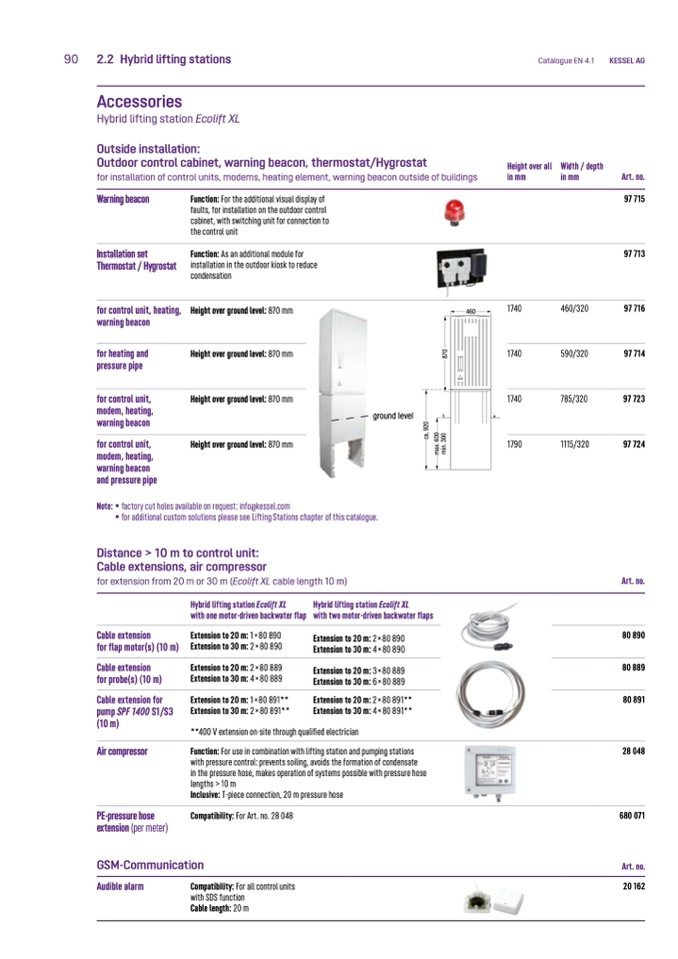

90 2.2 Hybrid lifting stations

Accessories

Hybrid lifting station Ecolift XL

Outside installation:

Outdoor control cabinet, warning beacon, thermostat/Hygrostat

for installation of control units, modems, heating element, warning beacon outside of buildings

Catalogue EN 4.1

KESSEL AG

Art. no.

97 715

97 713

97 716

97 714

97 723

97 724

Art. no.

80 890

80 889

80 891

28 048

680 071

Art. no.

20 162

Warning beacon

Installation set

Thermostat / Hygrostat

for control unit, heating,

warning beacon

for heating and

pressure pipe

for control unit,

modem, heating,

warning beacon

for control unit,

modem, heating,

warning beacon

and pressure pipe

Function: For the additional visual display of

faults, for installation on the outdoor control

cabinet, with switching unit for connection to

the control unit

Function: As an additional module for

installation in the outdoor kiosk to reduce

condensation

Height over ground level: 870 mm

Height over ground level: 870 mm

Height over ground level: 870 mm

Height over ground level: 870 mm

460

Height over all

in mm

1740

1740

1740

1790

Width / depth

in mm

460/320

590/320

785/320

1115/320

ground level

Note: • factory cut holes available on request: info@kessel.com

• for additional custom solutions please see Lifting Stations chapter of this catalogue.

Distance > 10 m to control unit:

Cable extensions, air compressor

for extension from 20 m or 30 m (Ecolift XL cable length 10 m)

Cable extension

for flap motor(s) (10 m)

Cable extension

for probe(s) (10 m)

Cable extension for

pump SPF 1400 S1/S3

(10 m)

Air compressor

PE-pressure hose

extension (per meter)

Hybrid lifting station Ecolift XL

with one motor-driven backwater flap

Extension to 20 m: 1 × 80 890

Extension to 30 m: 2 × 80 890

Extension to 20 m: 2 × 80 889

Extension to 30 m: 4 × 80 889

Extension to 20 m: 1 × 80 891**

Extension to 30 m: 2 × 80 891**

Hybrid lifting station Ecolift XL

with two motor-driven backwater flaps

Extension to 20 m: 2 × 80 890

Extension to 30 m: 4 × 80 890

Extension to 20 m: 3 × 80 889

Extension to 30 m: 6 × 80 889

Extension to 20 m: 2 × 80 891**

Extension to 30 m: 4 × 80 891**

**400 V extension on-site through qualified electrician

Function: For use in combination with lifting station and pumping stations

with pressure control: prevents soiling, avoids the formation of condensate

in the pressure hose, makes operation of systems possible with pressure hose

lengths > 10 m

Inclusive: T-piece connection, 20 m pressure hose

Compatibility: For Art. no. 28 048

GSM-Communication

Audible alarm

Compatibility: For all control units

with SDS function

Cable length: 20 m

c

a

.

9

2

0

m

a

x

.

6

0

0

m

i

n

.

3

0

0

8

7

0
