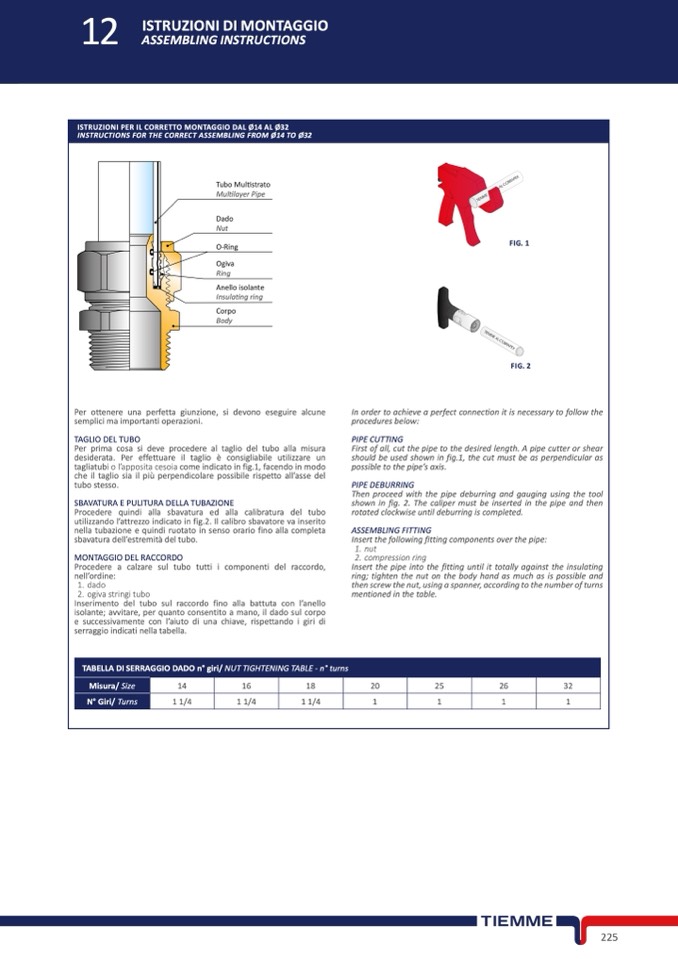

ISTRUZIONI DI MONTAGGIO

ASSEMBLING INSTRUCTIONS

ISTRUZIONI PER IL CORRETTO MONTAGGIO DAL Ø14 AL Ø32

INSTRUCTIONS FOR THE CORRECT ASSEMBLING FROM Ø14 TO Ø32

Tubo Mul�strato

Multilayer Pipe

Dado

Nut

O-Ring

Ogiva

Ring

Anello isolante

Insulating ring

Corpo

Body

Per ottenere una perfetta giunzione, si devono eseguire alcune

semplici ma importanti operazioni.

TAGLIO DEL TUBO

Per prima cosa si deve procedere al taglio del tubo alla misura

desiderata. Per effettuare il taglio

è consigliabile utilizzare un

tagliatubi o l’apposita cesoia come indicato in fig.1, facendo in modo

che il taglio sia il pi

ù perpendicolare possibile rispetto all’asse del

tubo stesso.

Procedere quindi alla sbavatura ed alla calibratura del tubo

utilizzando l’attrezzo indicato in fig.2. Il calibro sbavatore va inserito

nella tubazione e quindi ruotato in senso orario fino alla completa

sbavatura dell’estremit

à del tubo.

Procedere a calzare sul tubo tutti i componenti del raccordo,

nell’ordine:

1. dado

2. ogiva stringi tubo

Inserimento del tubo sul raccordo fino alla battuta con l’anello

isolante; avvitare, per quanto consentito a mano, il dado sul corpo

e successivamente con l’aiuto di una chiave, rispettando i giri di

serraggio indicati nella tabella.

FIG. 1

FIG. 2

In order to achieve a perfect connection it is necessary to follow the

procedures below:

PIPE CUTTING

First of all, cut the pipe to the desired length. A pipe cutter or shear

should be used shown in fig.1, the cut must be as perpendicular as

possible to the pipe’s axis.

Then proceed with the pipe deburring and gauging using the tool

shown in fig. 2. The caliper must be inserted in the pipe and then

rotated clockwise until deburring is completed.

SBAVATURA E PULITURA DELLA TUBAZIONE

MONTAGGIO DEL RACCORDO

1. nut

2. compression ring

Insert the pipe into the fitting until it totally against the insulating

ring; tighten the nut on the body hand as much as is possible and

then screw the nut, using a spanner, according to the number of turns

mentioned in the table.

PIPE DEBURRING

ASSEMBLING FITTING

Insert the following fitting components over the pipe:

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turns

Misura/ Size

14

16

18

20

25

26

32

1 1/4

1 1/4

1 1/4

1

1

1

1

N° Giri/ Turns

225
