ISTRUZIONI DI MONTAGGIO

ASSEMBLING INSTRUCTIONS

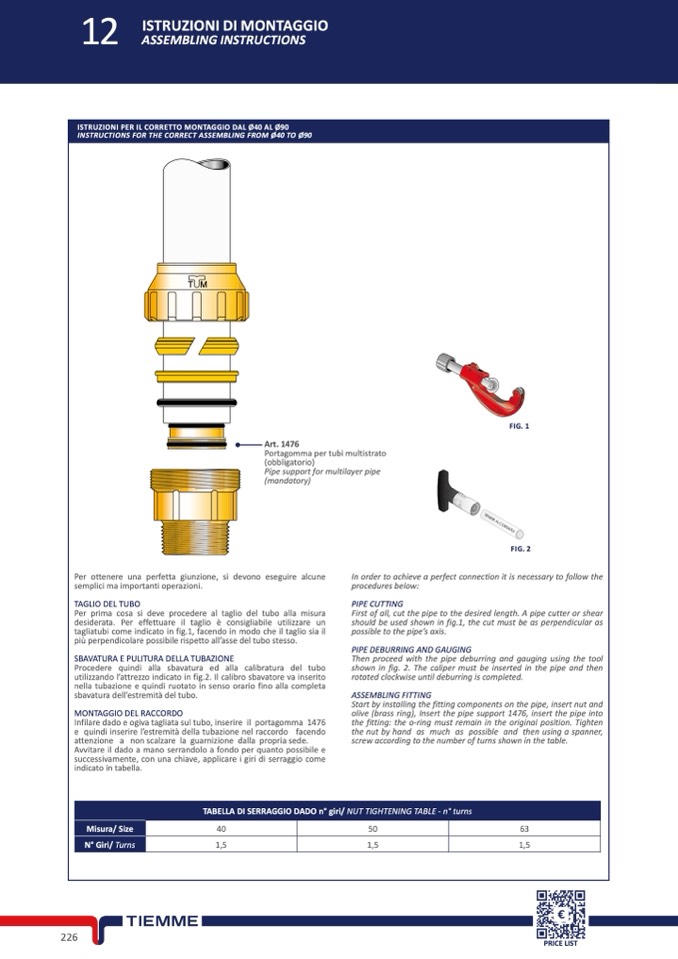

ISTRUZIONI PER IL CORRETTO MONTAGGIO DAL Ø40 AL Ø90

INSTRUCTIONS FOR THE CORRECT ASSEMBLING FROM Ø40 TO Ø90

Per ottenere una perfetta giunzione, si devono eseguire alcune

semplici ma importanti operazioni.

Per prima cosa si deve procedere al taglio del tubo alla misura

desiderata. Per effettuare il taglio

è consigliabile utilizzare un

tagliatubi come indicato in fig.1, facendo in modo che il taglio sia il

pi

ù perpendicolare possibile rispetto all’asse del tubo stesso.

Procedere quindi alla sbavatura ed alla calibratura del tubo

utilizzando l’attrezzo indicato in fig.2. Il calibro sbavatore va inserito

nella tubazione e quindi ruotato in senso orario fino alla completa

sbavatura dell’estremit

à del tubo.

Infilare dado e ogiva tagliata sul tubo, inserire il portagomma 1476

e quindi inserire l’estremit

à della tubazione nel raccordo facendo

attenzione a non scalzare la guarnizione dalla propria sede.

Avvitare il dado a mano serrandolo a fondo per quanto possibile e

successivamente, con una chiave, applicare i giri di serraggio come

indicato in tabella.

TAGLIO DEL TUBO

SBAVATURA E PULITURA DELLA TUBAZIONE

PIPE DEBURRING AND GAUGING

MONTAGGIO DEL RACCORDO

Misura/ Size

N° Giri/ Turns

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turns

40

50

63

1,5

1,5

1,5

Art. 1476

FIG. 1

FIG. 2

In order to achieve a perfect connection it is necessary to follow the

procedures below:

PIPE CUTTING

First of all, cut the pipe to the desired length. A pipe cutter or shear

should be used shown in fig.1, the cut must be as perpendicular as

possible to the pipe’s axis.

Then proceed with the pipe deburring and gauging using the tool

shown in fig. 2. The caliper must be inserted in the pipe and then

rotated clockwise until deburring is completed.

ASSEMBLING FITTING

Start by installing the fitting components on the pipe, insert nut and

olive (brass ring), Insert the pipe support 1476, insert the pipe into

the fitting: the o-ring must remain in the original position. Tighten

the nut by hand as much as possible and then using a spanner,

screw according to the number of turns shown in the table.

Portagomma per tubi multistrato

(obbligatorio)

Pipe support for multilayer pipe

(mandatory)
