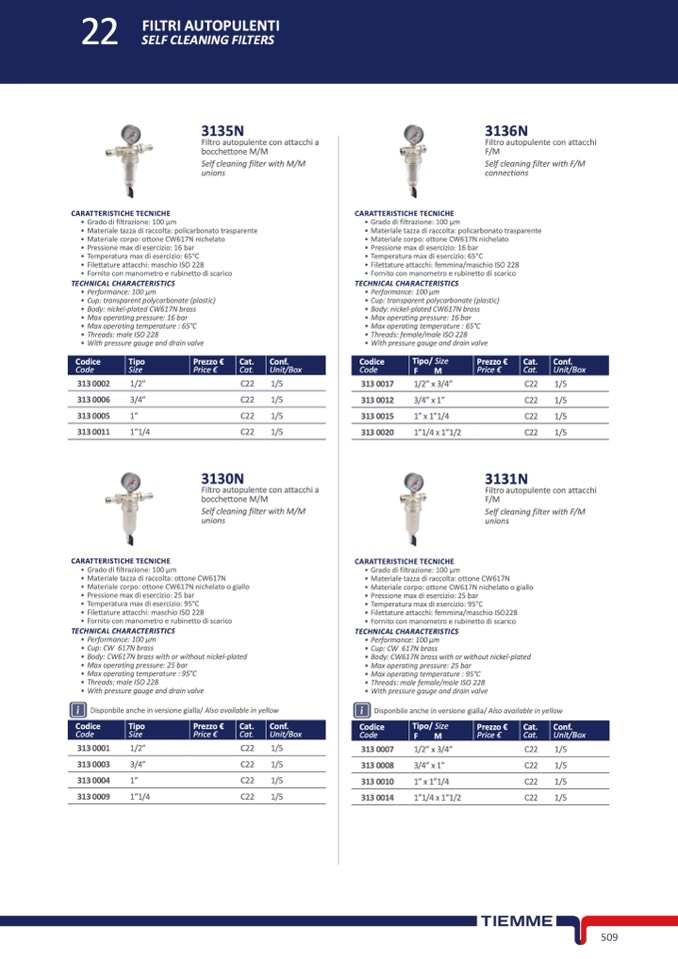

22

FILTRI AUTOPULENTI

SELF CLEANING FILTERS

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo/ Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

F

M

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo/ Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

F

M

CARATTERISTICHE TECNICHE

• Grado di filtrazione: 100 μm

• Materiale tazza di raccolta: policarbonato trasparente

• Materiale corpo: ottone CW617N nichelato

• Pressione max di esercizio: 16 bar

• Temperatura max di esercizio: 65°C

• Filettature attacchi: maschio ISO 228

• Fornito con manometro e rubinetto di scarico

CARATTERISTICHE TECNICHE

TECHNICAL CHARACTERISTICS

• Performance: 100 μm

• Cup: transparent polycarbonate (plastic)

• Body: nickel-plated CW617N brass

• Max operating pressure: 16 bar

• Max operating temperature : 65°C

• Threads: male ISO 228

• With pressure gauge and drain valve

• Grado di filtrazione: 100 μm

• Materiale tazza di raccolta: policarbonato trasparente

• Materiale corpo: ottone CW617N nichelato

• Pressione max di esercizio: 16 bar

• Temperatura max di esercizio: 65°C

• Filettature attacchi: femmina/maschio ISO 228

• Fornito con manometro e rubinetto di scarico

3135N

3136N

Filtro autopulente con attacchi a

bocchettone M/M

Filtro autopulente con attacchi

F/M

Self cleaning filter with M/M

unions

Self cleaning filter with F/M

connections

TECHNICAL CHARACTERISTICS

• Performance: 100 μm

• Cup: transparent polycarbonate (plastic)

• Body: nickel-plated CW617N brass

• Max operating pressure: 16 bar

• Max operating temperature : 65°C

• Threads: female/male ISO 228

• With pressure gauge and drain valve

313 0002

313 0006

313 0005

313 0011

1/2”

3/4”

1”

1”1/4

C22

C22

C22

C22

3130N

1/5

1/5

1/5

1/5

313 0017

313 0012

313 0015

313 0020

1/2” x 3/4”

3/4” x 1”

1” x 1”1/4

1”1/4 x 1”1/2

C22

1/5

C22

1/5

C22

1/5

C22

1/5

CARATTERISTICHE TECNICHE

CARATTERISTICHE TECNICHE

• Grado di filtrazione: 100 μm

• Materiale tazza di raccolta: ottone CW617N

• Materiale corpo: ottone CW617N nichelato o giallo

• Pressione max di esercizio: 25 bar

• Temperatura max di esercizio: 95°C

• Filettature attacchi: maschio ISO 228

• Fornito con manometro e rubinetto di scarico

TECHNICAL CHARACTERISTICS

• Performance: 100 μm

• Cup: CW 617N brass

• Body: CW617N brass with or without nickel-plated

• Max operating pressure: 25 bar

• Max operating temperature : 95°C

• Threads: male ISO 228

• With pressure gauge and drain valve

Disponbile anche in versione gialla/ Also available in yellow

• Grado di filtrazione: 100 μm

• Materiale tazza di raccolta: ottone CW617N

• Materiale corpo: ottone CW617N nichelato o giallo

• Pressione max di esercizio: 25 bar

• Temperatura max di esercizio: 95°C

• Filettature attacchi: femmina/maschio ISO228

• Fornito con manometro e rubinetto di scarico

TECHNICAL CHARACTERISTICS

• Performance: 100 μm

• Cup: CW 617N brass

• Body: CW617N brass with or without nickel-plated

• Max operating pressure: 25 bar

• Max operating temperature : 95°C

• Threads: male female/male ISO 228

• With pressure gauge and drain valve

Disponbile anche in versione gialla/ Also available in yellow

attacchi a

Self cleaning filter with M/M

unions

3131N

Filtro autopulente con

bocchettone M/M

Filtro autopulente con attacchi

F/M

Self cleaning filter with F/M

unions

313 0001

1/2”

313 0003

3/4”

313 0004

1”

313 0009

1”1/4

C22

1/5

C22

1/5

C22

1/5

C22

1/5

313 0007

313 0008

313 0010

313 0014

1/2” x 3/4”

3/4” x 1”

1” x 1”1/4

1”1/4 x 1”1/2

C22

1/5

C22

1/5

C22

1/5

C22

1/5

509
