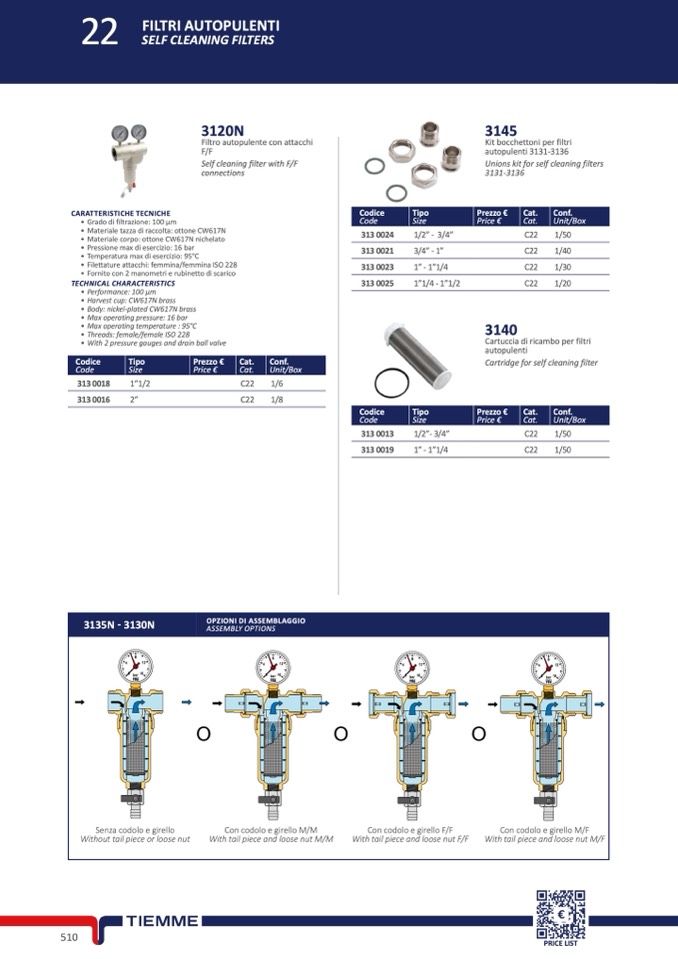

22

FILTRI AUTOPULENTI

SELF CLEANING FILTERS

3120N

3145

Filtro autopulente con attacchi

F/F

Kit bocchettoni per filtri

autopulenti 3131-3136

Self cleaning filter with F/F

connections

Unions kit for self cleaning filters

3131-3136

C22

1/50

C22

1/40

C22

1/30

C22

1/20

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

CARATTERISTICHE TECNICHE

• Grado di filtrazione: 100 μm

• Materiale tazza di raccolta: ottone CW617N

• Materiale corpo: ottone CW617N nichelato

• Pressione max di esercizio: 16 bar

• Temperatura max di esercizio: 95°C

• Filettature attacchi: femmina/femmina ISO 228

• Fornito con 2 manometri e rubinetto di scarico

TECHNICAL CHARACTERISTICS

• Performance: 100 μm

• Harvest cup: CW617N brass

• Body: nickel-plated CW617N brass

• Max operating pressure: 16 bar

• Max operating temperature : 95°C

• Threads: female/female ISO 228

• With 2 pressure gauges and drain ball valve

313 0024

313 0021

313 0023

313 0025

313 0013

313 0019

1/2” - 3/4”

3/4” - 1”

1” - 1”1/4

1”1/4 - 1”1/2

1/2”- 3/4”

1” - 1”1/4

3140

313 0018

313 0016

1”1/2

C22

1/6

2”

C22

1/8

Cartridge for self cleaning filter

C22

1/50

C22

1/50

Cartuccia di ricambo per filtri

autopulenti

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

3135N - 3130N

OPZIONI DI ASSEMBLAGGIO

ASSEMBLY OPTIONS

Senza codolo e girello

Con codolo e girello M/M

Con codolo e girello F/F

Con codolo e girello M/F

Without tail piece or loose nut

With tail piece and loose nut M/M

With tail piece and loose nut F/F

With tail piece and loose nut M/F

510

PRICE LIST
