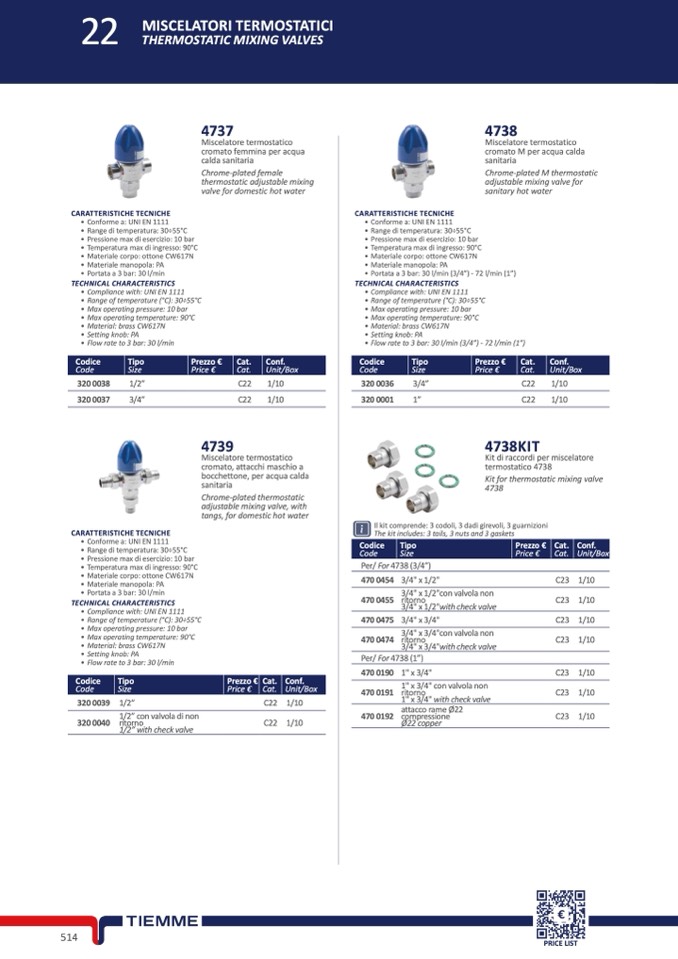

22

MISCELATORI TERMOSTATICI

THERMOSTATIC MIXING VALVES

CARATTERISTICHE TECNICHE

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 90°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 90°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min

CARATTERISTICHE TECNICHE

4737

4738

Miscelatore termostatico

cromato femmina per acqua

calda sanitaria

Chrome-plated female

thermostatic adjustable mixing

valve for domestic hot water

Miscelatore termostatico

cromato M per acqua calda

sanitaria

Chrome-plated M thermostatic

adjustable mixing valve for

sanitary hot water

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 90°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min (3/4”) - 72 l/min (1”)

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 90°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min (3/4”) - 72 l/min (1”)

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

320 0038

320 0037

1/2”

3/4”

C22

C22

1/10

1/10

320 0036

3/4”

320 0001

1”

C22 1/10

C22 1/10

CARATTERISTICHE TECNICHE

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 90°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 90°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min

Il kit comprende: 3 codoli, 3 dadi girevoli, 3 guarnizioni

4739

4738KIT

Miscelatore termostatico

cromato, attacchi maschio a

bocchettone, per acqua calda

sanitaria

Chrome-plated thermostatic

adjustable mixing valve, with

tangs, for domestic hot water

Kit di raccordi per miscelatore

termostatico 4738

The kit includes: 3 tails, 3 nuts and 3 gaskets

Per/ For 4738 (3/4”)

Kit for thermostatic mixing valve

4738

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

470 0454

470 0455

470 0475

470 0474

3/4" x 1/2"

3/4" x 1/2"con valvola non

ritorno

3/4" x 1/2"with check valve

3/4" x 3/4"

3/4" x 3/4"con valvola non

ritorno

3/4" x 3/4"with check valve

Per/ For 4738 (1”)

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

320 0039

320 0040

1/2”

1/2” con valvola di non

ritorno

1/2” with check valve

C22 1/10

C22 1/10

470 0190

470 0191

470 0192

1" x 3/4"

1" x 3/4" con valvola non

ritorno

1" x 3/4" with check valve

attacco rame Ø22

compressione

Ø22 copper

514

PRICE LIST
