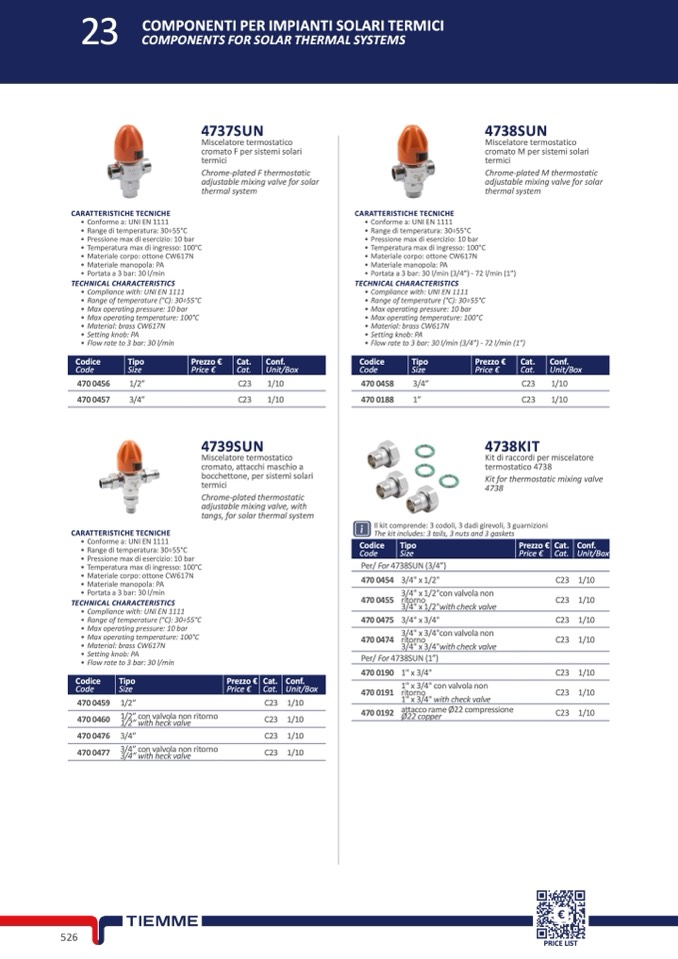

23

COMPONENTI PER IMPIANTI SOLARI TERMICI

COMPONENTS FOR SOLAR THERMAL SYSTEMS

4737SUN

4738SUN

CARATTERISTICHE TECNICHE

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 100°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 100°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min

CARATTERISTICHE TECNICHE

Miscelatore termostatico

cromato F per sistemi solari

termici

Miscelatore termostatico

cromato M per sistemi solari

termici

Chrome-plated F thermostatic

adjustable mixing valve for solar

thermal system

Chrome-plated M thermostatic

adjustable mixing valve for solar

thermal system

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 100°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min (3/4”) - 72 l/min (1”)

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 100°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min (3/4”) - 72 l/min (1”)

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

470 0456

470 0457

1/2”

3/4”

C23

C23

4739SUN

1/10

1/10

470 0458

3/4”

470 0188

1”

C23 1/10

C23 1/10

CARATTERISTICHE TECNICHE

• Conforme a: UNI EN 1111

• Range di temperatura: 30÷55°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 100°C

• Materiale corpo: ottone CW617N

• Materiale manopola: PA

• Portata a 3 bar: 30 l/min

TECHNICAL CHARACTERISTICS

• Compliance with: UNI EN 1111

• Range of temperature (°C): 30÷55°C

• Max operating pressure: 10 bar

• Max operating temperature: 100°C

• Material: brass CW617N

• Setting knob: PA

• Flow rate to 3 bar: 30 l/min

470 0459

470 0460

470 0476

470 0477

Il kit comprende: 3 codoli, 3 dadi girevoli, 3 guarnizioni

Miscelatore termostatico

cromato, attacchi maschio a

bocchettone, per sistemi solari

termici

4738KIT

Chrome-plated thermostatic

adjustable mixing valve, with

tangs, for solar thermal system

Kit for thermostatic mixing valve

4738

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

C23 1/10

The kit includes: 3 tails, 3 nuts and 3 gaskets

Per/ For 4738SUN (3/4”)

Kit di raccordi per miscelatore

termostatico 4738

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

470 0454

470 0455

470 0475

470 0474

3/4" x 1/2"

3/4" x 1/2"con valvola non

ritorno

3/4" x 1/2"with check valve

3/4" x 3/4"

3/4" x 3/4"con valvola non

ritorno

3/4" x 3/4"with check valve

Per/ For 4738SUN (1”)

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

1/2”

1/2” con valvola non ritorno

C23 1/10

C23 1/10

C23 1/10

C23 1/10

470 0190

470 0191

470 0192

1" x 3/4"

1" x 3/4" con valvola non

ritorno

1" x 3/4" with check valve

3/4”

3/4” con valvola non ritorno

attacco rame Ø22 compressione

1/2” with heck valve

Ø22 copper

3/4” with heck valve

526
