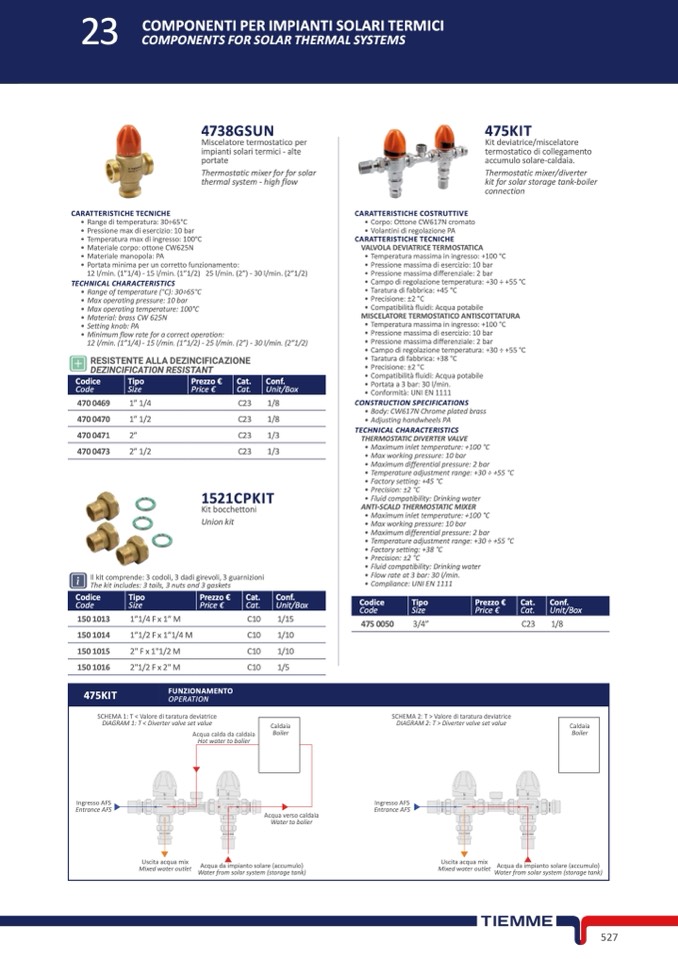

23

COMPONENTI PER IMPIANTI SOLARI TERMICI

COMPONENTS FOR SOLAR THERMAL SYSTEMS

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

475KIT

FUNZIONAMENTO

OPERATION

SCHEMA 1: T < Valore di taratura deviatrice

SCHEMA 2: T > Valore di taratura deviatrice

DIAGRAM 1: T < Diverter valve set value

DIAGRAM 2: T > Diverter valve set value

Acqua calda da caldaia

Hot water to bolier

Ingresso AFS

Ingresso AFS

Entrance AFS

Acqua verso caldaia

Entrance AFS

Mixed water outlet

Water from solar system (storage tank)

Mixed water outlet

Water from solar system (storage tank)

Caldaia

Boiler

Water to bolier

Caldaia

Boiler

Uscita acqua mix

Acqua da impianto solare (accumulo)

Uscita acqua mix

Acqua da impianto solare (accumulo)

CARATTERISTICHE TECNICHE

CARATTERISTICHE COSTRUTTIVE

• Corpo: Ottone CW617N cromato

• Volantini di regolazione PA

CARATTERISTICHE TECNICHE

VALVOLA DEVIATRICE TERMOSTATICA

• Temperatura massima in ingresso: +100 °C

• Pressione massima di esercizio: 10 bar

• Pressione massima differenziale: 2 bar

• Campo di regolazione temperatura: +30 ÷ +55 °C

• Taratura di fabbrica: +45 °C

• Precisione: ±2 °C

• Compatibilit

à fluidi: Acqua potabile

MISCELATORE TERMOSTATICO ANTISCOTTATURA

• Temperatura massima in ingresso: +100 °C

• Pressione massima di esercizio: 10 bar

• Pressione massima differenziale: 2 bar

• Campo di regolazione temperatura: +30 ÷ +55 °C

• Taratura di fabbrica: +38 °C

• Range di temperatura: 30÷65°C

• Pressione max di esercizio: 10 bar

• Temperatura max di ingresso: 100°C

• Materiale corpo: ottone CW625N

• Materiale manopola: PA

• Portata minima per un corretto funzionamento:

12 l/min. (1”1/4) - 15 l/min. (1”1/2) 25 l/min. (2”) - 30 l/min. (2”1/2)

TECHNICAL CHARACTERISTICS

• Range of temperature (°C): 30÷65°C

• Max operating pressure: 10 bar

• Max operating temperature: 100°C

• Material: brass CW 625N

• Setting knob: PA

• Minimum flow rate for a correct operation:

12 l/min. (1”1/4) - 15 l/min. (1”1/2) - 25 l/min. (2”) - 30 l/min. (2”1/2)

RESISTENTE ALLA DEZINCIFICAZIONE

• Precisione: ±2 °C

• Compatibilit

à fluidi: Acqua potabile

• Portata a 3 bar: 30 l/min.

• Conformit

à: UNI EN 1111

CONSTRUCTION SPECIFICATIONS

• Body: CW617N Chrome plated brass

• Adjusting handwheels PA

TECHNICAL CHARACTERISTICS

THERMOSTATIC DIVERTER VALVE

• Maximum inlet temperature: +100 °C

• Max working pressure: 10 bar

• Maximum differential pressure: 2 bar

• Temperature adjustment range: +30 ÷ +55 °C

• Factory setting: +45 °C

• Precision: ±2 °C

• Fluid compatibility: Drinking water

ANTI-SCALD THERMOSTATIC MIXER

• Maximum inlet temperature: +100 °C

• Max working pressure: 10 bar

• Maximum differential pressure: 2 bar

• Temperature adjustment range: +30 ÷ +55 °C

• Factory setting: +38 °C

• Precision: ±2 °C

• Fluid compatibility: Drinking water

• Flow rate at 3 bar: 30 l/min.

• Compliance: UNI EN 1111

475 0050

3/4”

DEZINCIFICATION RESISTANT

4738GSUN

475KIT

Miscelatore termostatico per

impianti solari termici - alte

portate

Kit deviatrice/miscelatore

termostatico di collegamento

accumulo solare-caldaia.

Thermostatic mixer for for solar

thermal system - high flow

Thermostatic mixer/diverter

kit for solar storage tank-boiler

connection

470 0469

470 0470

470 0471

470 0473

1” 1/4

1” 1/2

2”

2” 1/2

C23 1/8

C23 1/8

C23 1/3

C23 1/3

Kit bocchettoni

Union kit

Il kit comprende: 3 codoli, 3 dadi girevoli, 3 guarnizioni

The kit includes: 3 tails, 3 nuts and 3 gaskets

1521CPKIT

150 1013

150 1014

150 1015

1”1/4 F x 1” M

1”1/2 F x 1”1/4 M

2" F x 1"1/2 M

C10

1/15

C10

1/10

C10

1/10

C10

1/5

C23 1/8

1501016

2"1/2Fx2"M

527
