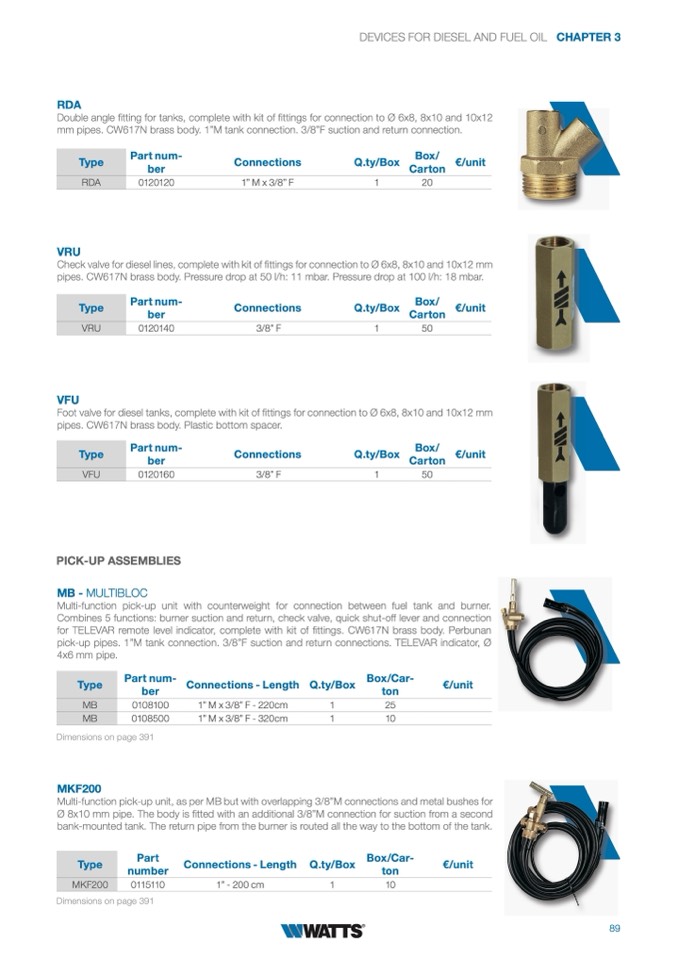

RDA

Double angle fitting for tanks, complete with kit of fittings for connection to Ø 6x8, 8x10 and 10x12

mm pipes. CW617N brass body. 1”M tank connection. 3/8”F suction and return connection.

DEVICES FOR DIESEL AND FUEL OIL

CHAPTER 3

Type

RDA

Part num-

ber

0120120

Connections

1” M x 3/8” F

Q.ty/Box

Box/

€/unit

Carton

1

20

VRU

Check valve for diesel lines, complete with kit of fittings for connection to Ø 6x8, 8x10 and 10x12 mm

pipes. CW617N brass body. Pressure drop at 50 l/h: 11 mbar. Pressure drop at 100 l/h: 18 mbar.

Type

VRU

VFU

Part num-

Connections

Q.ty/Box

Box/

€/unit

ber

Carton

0120140

3/8”F

1

50

Foot valve for diesel tanks, complete with kit of fittings for connection to Ø 6x8, 8x10 and 10x12 mm

pipes. CW617N brass body. Plastic bottom spacer.

Part num-

Connections

Q.ty/Box

Box/

€/unit

ber

Carton

0120160

3/8”F

1

50

PICK-UP ASSEMBLIES

MB - MULTIBLOC

Multi-function pick-up unit with counterweight for connection between fuel tank and burner.

Combines 5 functions: burner suction and return, check valve, quick shut-off lever and connection

for TELEVAR remote level indicator, complete with kit of fittings. CW617N brass body. Perbunan

pick-up pipes. 1”M tank connection. 3/8”F suction and return connections. TELEVAR indicator, Ø

4x6 mm pipe.

Type

VFU

Type

MB

MB

Part num-

ber

0108100

0108500

Dimensions on page 391

MKF200

Connections - Length

1” M x 3/8” F - 220cm

1” M x 3/8” F - 320cm

Q.ty/Box

Box/Car-

ton

1

25

1

10

€/unit

Multi-function pick-up unit, as per MB but with overlapping 3/8”M connections and metal bushes for

Ø 8x10 mm pipe. The body is fitted with an additional 3/8”M connection for suction from a second

bank-mounted tank. The return pipe from the burner is routed all the way to the bottom of the tank.

Type

MKF200

Part

number

0115110

Connections - Length

Q.ty/Box

Box/Car-

€/unit

ton

1” - 200 cm

1

10

Dimensions on page 391
