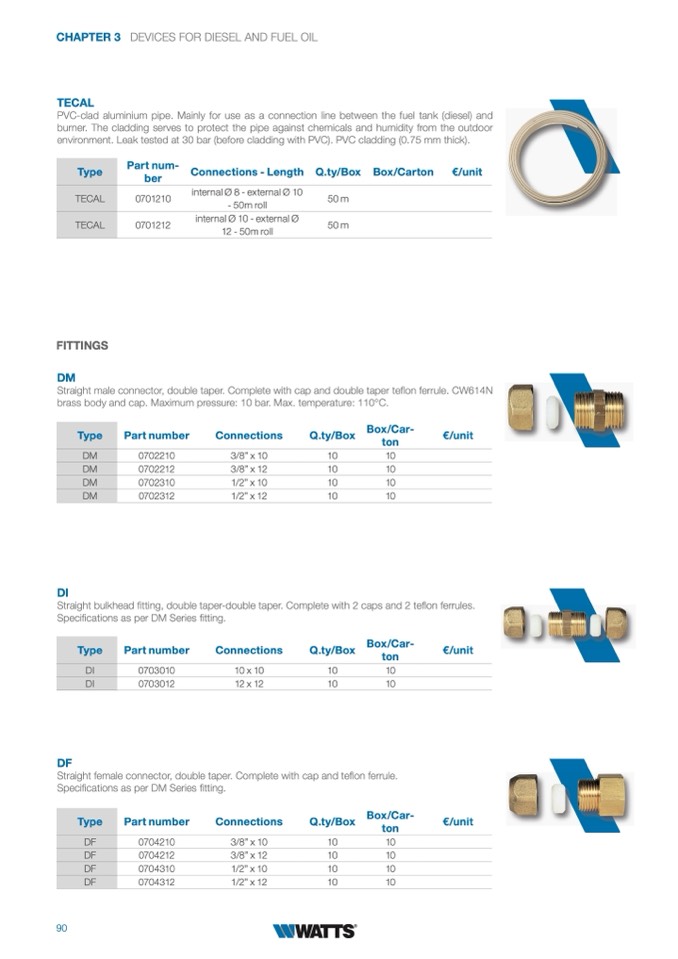

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL

TECAL

PVC-clad aluminium pipe. Mainly for use as a connection line between the fuel tank (diesel) and

burner. The cladding serves to protect the pipe against chemicals and humidity from the outdoor

environment. Leak tested at 30 bar (before cladding with PVC). PVC cladding (0.75 mm thick).

Type

TECAL

TECAL

Part num-

ber

0701210

0701212

Connections - Length

internal Ø 8 - external Ø 10

- 50m roll

internal Ø 10 - external Ø

12 - 50m roll

Q.ty/Box

50 m

50 m

Box/Carton

€/unit

FITTINGS

DM

Straight male connector, double taper. Complete with cap and double taper te

flon ferrule. CW614N

brass body and cap. Maximum pressure: 10 bar. Max. temperature: 110°C.

Type

DM

DM

DM

DM

Part number

0702210

0702212

0702310

0702312

Connections

3/8” x 10

3/8” x 12

1/2” x 10

1/2” x 12

Q.ty/Box

Box/Car-

ton

10

10

10

10

10

10

10

10

€/unit

DI

Straight bulkhead fitting, double taper-double taper. Complete with 2 caps and 2 teflon ferrules.

Specifications as per DM Series fitting.

Type

DI

DI

Part number

0703010

0703012

Connections

10 x 10

12 x 12

Q.ty/Box

Box/Car-

ton

10

10

10

10

€/unit

DF

Straight female connector, double taper. Complete with cap and te

flon ferrule.

Specifications as per DM Series fitting.

Type

DF

DF

DF

DF

Part number

0704210

0704212

0704310

0704312

Connections

3/8” x 10

3/8” x 12

1/2” x 10

1/2” x 12

Q.ty/Box

Box/Car-

ton

10

10

10

10

10

10

10

10

€/unit
