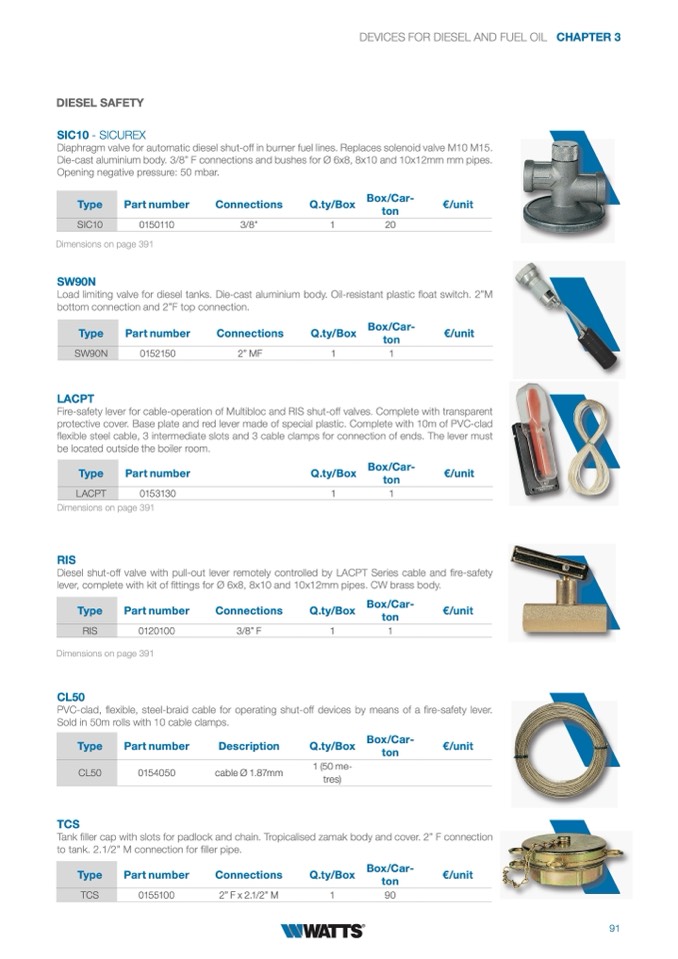

DIESEL SAFETY

SIC10 - SICUREX

Diaphragm valve for automatic diesel shut-off in burner fuel lines. Replaces solenoid valve M10 M15.

Die-cast aluminium body. 3/8” F connections and bushes for Ø 6x8, 8x10 and 10x12mm mm pipes.

Opening negative pressure: 50 mbar.

DEVICES FOR DIESEL AND FUEL OIL

CHAPTER 3

Type

SIC10

Part number

Connections

0150110

3/8"

Dimensions on page 391

SW90N

Q.ty/Box

Box/Car-

ton

1

20

€/unit

Load limiting valve for diesel tanks. Die-cast aluminium body. Oil-resistant plastic

float switch. 2”M

bottom connection and 2”F top connection.

Type

SW90N

Part number

Connections

Q.ty/Box

Box/Car-

€/unit

ton

0152150

2” MF

1

1

LACPT

Fire-safety lever for cable-operation of Multibloc and RIS shut-off valves. Complete with transparent

protective cover. Base plate and red lever made of special plastic. Complete with 10m of PVC-clad

flexible steel cable, 3 intermediate slots and 3 cable clamps for connection of ends. The lever must

be located outside the boiler room.

Type

LACPT

Part number

0153130

Dimensions on page 391

RIS

Q.ty/Box

Box/Car-

ton

1

1

€/unit

Diesel shut-off valve with pull-out lever remotely controlled by LACPT Series cable and fire-safety

lever, complete with kit of fittings for Ø 6x8, 8x10 and 10x12mm pipes. CW brass body.

Part number

Connections

Q.ty/Box

Box/Car-

€/unit

ton

0120100

3/8”F

1

1

Dimensions on page 391

CL50

PVC-clad, flexible, steel-braid cable for operating shut-off devices by means of a fire-safety lever.

Sold in 50m rolls with 10 cable clamps.

Type

RIS

Type

CL50

Part number

0154050

Description

cable Ø 1.87mm

Box/Car-

ton

1 (50 me-

tres)

Q.ty/Box

€/unit

TCS

Tank filler cap with slots for padlock and chain. Tropicalised zamak body and cover. 2” F connection

to tank. 2.1/2” M connection for filler pipe.

Part number

Connections

Q.ty/Box

Box/Car-

€/unit

ton

Type

TCS

0155100

2” F x 2.1/2” M

1

90
