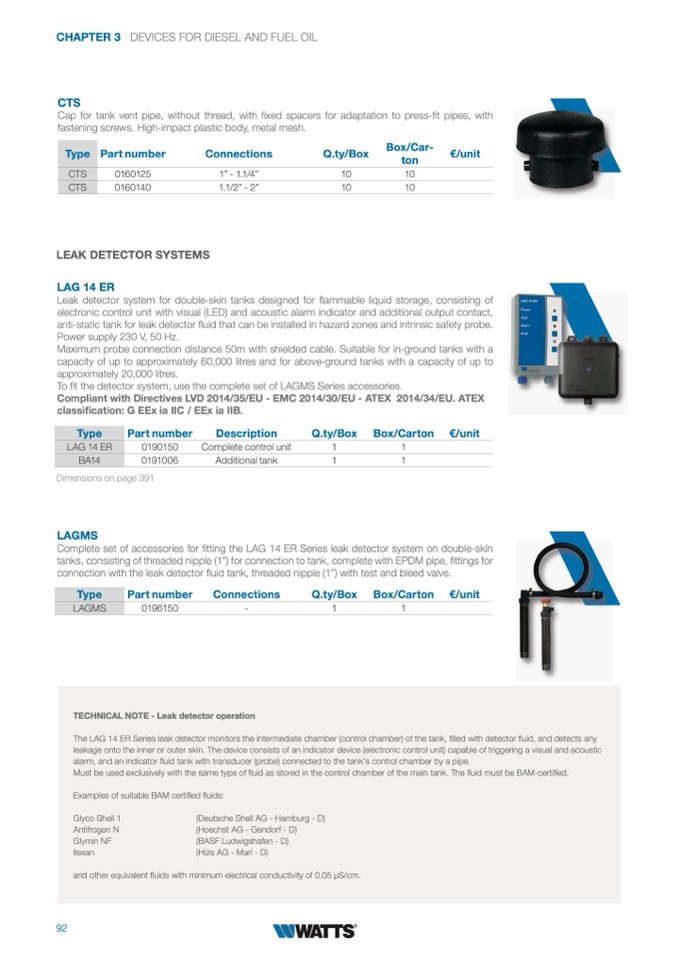

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL

CTS

Cap for tank vent pipe, without thread, with fixed spacers for adaptation to press-fit pipes, with

fastening screws. High-impact plastic body, metal mesh.

Type

CTS

CTS

Part number

0160125

0160140

Connections

1” - 1.1/4”

1.1/2” - 2”

Q.ty/Box

Box/Car-

ton

10

10

10

10

€/unit

LEAK DETECTOR SYSTEMS

LAG 14 ER

Leak detector system for double-skin tanks designed for flammable liquid storage, consisting of

electronic control unit with visual (LED) and acoustic alarm indicator and additional output contact,

anti-static tank for leak detector fluid that can be installed in hazard zones and intrinsic safety probe.

Power supply 230 V, 50 Hz.

Maximum probe connection distance 50m with shielded cable. Suitable for in-ground tanks with a

capacity of up to approximately 60,000 litres and for above-ground tanks with a capacity of up to

approximately 20,000 litres.

To fit the detector system, use the complete set of LAGMS Series accessories.

Compliant with Directives LVD 2014/35/EU - EMC 2014/30/EU - ATEX 2014/34/EU. ATEX

classification: G EEx ia IIC / EEx ia IIB.

Type

LAG 14 ER

BA14

Part number

0190150

0191006

Dimensions on page 391

LAGMS

Description

Complete control unit

Additional tank

Q.ty/Box Box/Carton

1

1

1

1

€/unit

Complete set of accessories for fitting the LAG 14 ER Series leak detector system on double-skin

tanks, consisting of threaded nipple (1”) for connection to tank, complete with EPDM pipe,

fittings for

connection with the leak detector fluid tank, threaded nipple (1”) with test and bleed valve.

Part number

Connections

Q.ty/Box Box/Carton €/unit

0196150

-

1

1

Type

LAGMS

TECHNICAL NOTE - Leak detector operation

The LAG 14 ER Series leak detector monitors the intermediate chamber (control chamber) of the tank, filled with detector fluid, and detects any

leakage onto the inner or outer skin. The device consists of an indicator device (electronic control unit) capable of triggering a visual and acoustic

alarm, and an indicator fluid tank with transducer (probe) connected to the tank's control chamber by a pipe.

Must be used exclusively with the same type of fluid as stored in the control chamber of the main tank. The fluid must be BAM-certified.

Examples of suitable BAM certified fluids:

Glyco Shell 1

Antifrogen N

Glymin NF

Ilexan

(Deutsche Shell AG - Hamburg - D)

(Hoechst AG - Gendorf - D)

(BASF Ludwigshafen - D)

(Hüls AG - Marl - D)

and other equivalent fluids with minimum electrical conductivity of 0.05 μS/cm.
