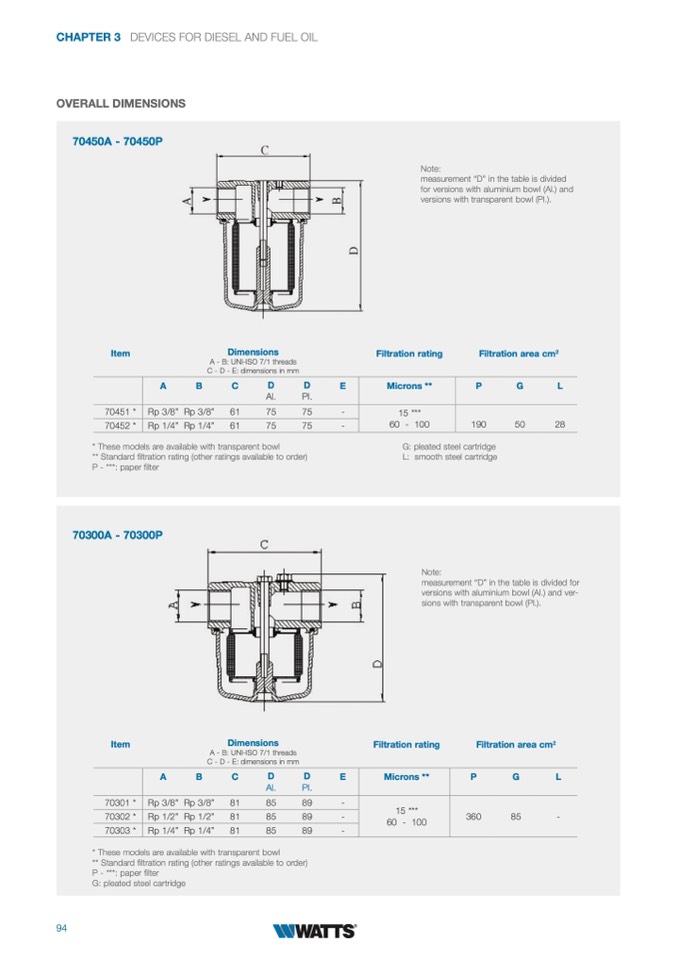

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL
OVERALL DIMENSIONS
70450A - 70450P
Item
70451 *
70452 *
Dimensions
A - B: UNI-ISO 7/1 threads
C - D - E: dimensions in mm
Filtration rating
Filtration area cm
2
P
G
L
190
50
28
Note:
measurement “D” in the table is divided
for versions with aluminium bowl (Al.) and
versions with transparent bowl (Pl.).
A
B
C
D
D
E
Al.
PI.
Microns **
Rp 3/8” Rp 3/8”
61
75
75
-
15 ***
60 - 100
Rp 1/4” Rp 1/4”
61
75
75
-
* These models are available with transparent bowl
** Standard filtration rating (other ratings available to order)
P - ***: paper filter
G: pleated steel cartridge
L: smooth steel cartridge
70300A - 70300P
Item
70301 *
70302 *
70303 *
Dimensions
A - B: UNI-ISO 7/1 threads
C - D - E: dimensions in mm
Filtration rating
Filtration area cm
2
P
G
L
360
85
-
Note:
measurement “D” in the table is divided for
versions with aluminium bowl (Al.) and ver-
sions with transparent bowl (Pl.).
A
B
C
D
D
E
Al.
PI.
Microns **
Rp 3/8” Rp 3/8”
81
85
89
-
15 ***
60 - 100
Rp 1/2” Rp 1/2”
81
85
89
-
Rp 1/4” Rp 1/4”
81
85
89
-
* These models are available with transparent bowl
** Standard filtration rating (other ratings available to order)
P - ***: paper filter
G: pleated steel cartridge
