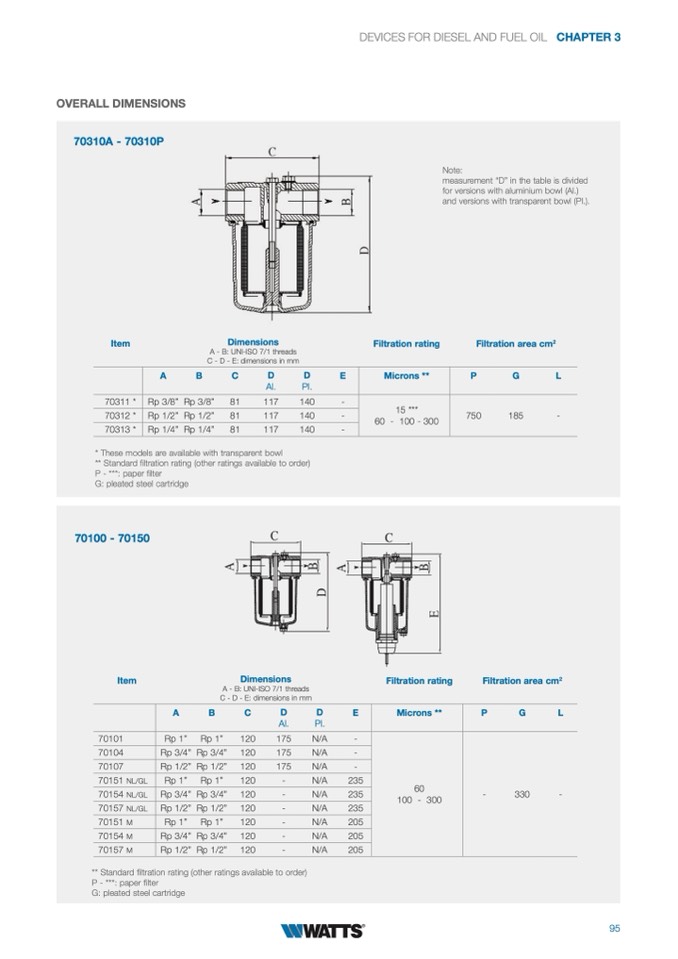

OVERALL DIMENSIONS
DEVICES FOR DIESEL AND FUEL OIL CHAPTER 3
70310A - 70310P
Item
70311 *
70312 *
70313 *
Dimensions
A - B: UNI-ISO 7/1 threads
C - D - E: dimensions in mm
Filtration rating
Note:
measurement “D” in the table is divided
for versions with aluminium bowl (Al.)
and versions with transparent bowl (Pl.).
Filtration area cm
2
P
G
L
750
185
-
A
B
C
D
D
E
Al.
PI.
Microns **
Rp 3/8” Rp 3/8”
81
117
140
-
15 ***
60 - 100 - 300
Rp 1/2” Rp 1/2”
81
117
140
-
Rp 1/4” Rp 1/4”
81
117
140
-
* These models are available with transparent bowl
** Standard filtration rating (other ratings available to order)
P - ***: paper filter
G: pleated steel cartridge
70100 - 70150
Item
70101
70104
70107
70151 NL/GL
70154 NL/GL
70157 NL/GL
70151 M
70154 M
70157 M
Dimensions
A - B: UNI-ISO 7/1 threads
C - D - E: dimensions in mm
Filtration rating
Filtration area cm
2
P
G
L
-
330
-
A
B
C
D
D
E
Al.
PI.
Microns **
Rp 1” Rp 1”
120
175
N/A
-
60
100 - 300
Rp 3/4” Rp 3/4” 120
175
N/A
-
Rp 1/2” Rp 1/2” 120
175
N/A
-
Rp 1” Rp 1”
120
-
N/A
235
Rp 3/4” Rp 3/4” 120
-
N/A
235
Rp 1/2” Rp 1/2” 120
-
N/A
235
Rp 1” Rp 1”
120
-
N/A
205
Rp 3/4” Rp 3/4” 120
-
N/A
205
Rp 1/2” Rp 1/2” 120
-
N/A
205
** Standard filtration rating (other ratings available to order)
P - ***: paper filter
G: pleated steel cartridge
95
