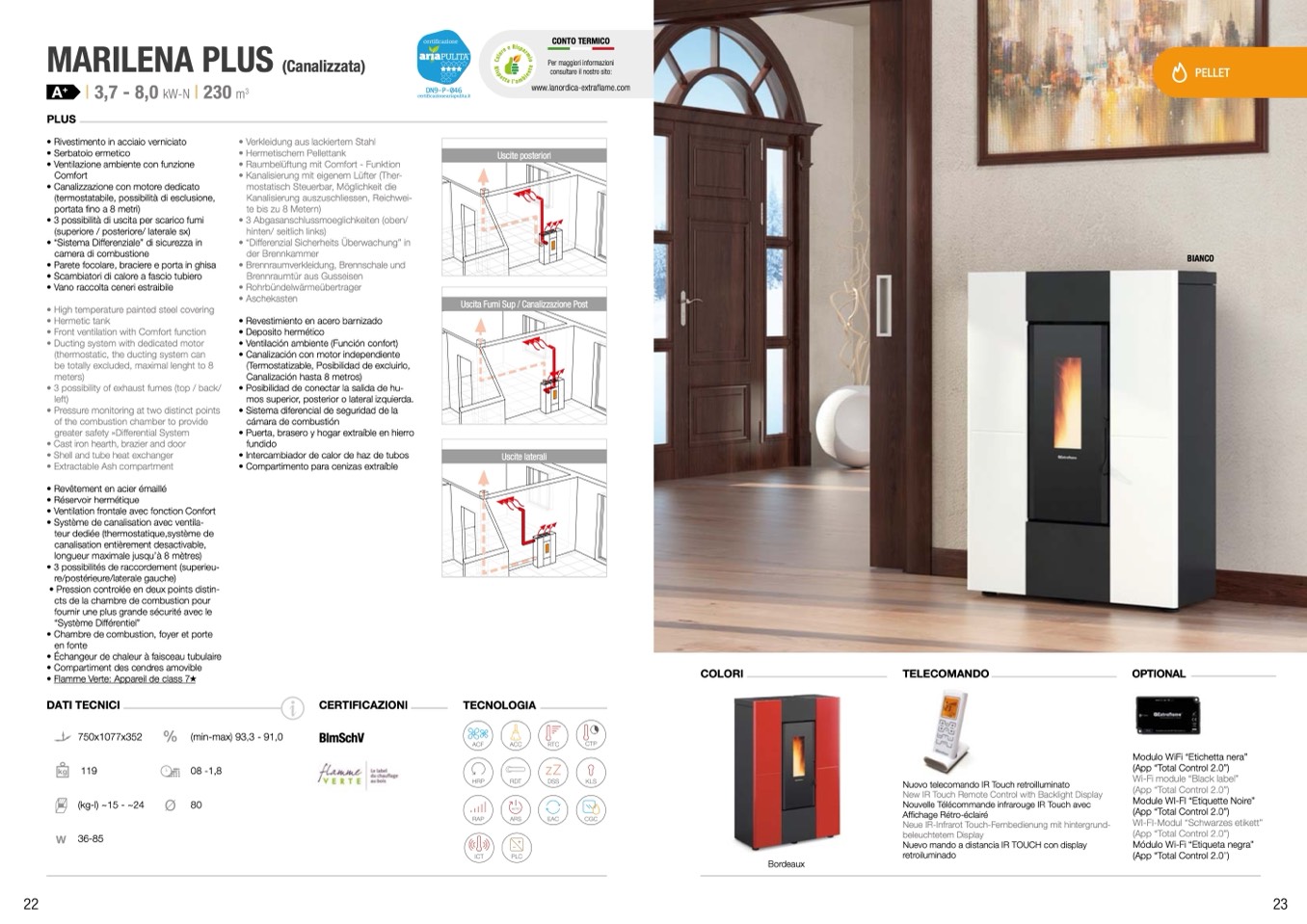

MARILENA PLUS

(Canalizzata)

A

+

| 3,7 - 8,0 kW-N | 230 m

3

PLUS

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

Uscite posteriori

PELLET

• Rivestimento in acciaio verniciato

• Serbatoio ermetico

• Ventilazione ambiente con funzione

Comfort

• Canalizzazione con motore dedicato

(termostatabile, possibilità di esclusione,

portata fino a 8 metri)

• 3 possibilità di uscita per scarico fumi

(superiore / posteriore/ laterale sx)

• “Sistema Differenziale” di sicurezza in

camera di combustione

• Parete focolare, braciere e porta in ghisa

• Scambiatori di calore a fascio tubiero

• Vano raccolta ceneri estraibile

• High temperature painted steel covering

• Hermetic tank

• Front ventilation with Comfort function

• Ducting system with dedicated motor

(thermostatic, the ducting system can

be totally excluded, maximal lenght to 8

meters)

• 3 possibility of exhaust fumes (top / back/

left)

• Pressure monitoring at two distinct points

of the combustion chamber to provide

greater safety »Differential System

• Cast iron hearth, brazier and door

• Shell and tube heat exchanger

• Extractable Ash compartment

• Revêtement en acier émaillé

• Réservoir hermétique

• Ventilation frontale avec fonction Confort

• Système de canalisation avec ventila-

teur dediée (thermostatique,système de

canalisation entièrement desactivable,

longueur maximale jusqu’à 8 mètres)

• 3 possibilités de raccordement (superieu-

re/postérieure/laterale gauche)

• Pression controlée en deux points distin-

cts de la chambre de combustion pour

fournir une plus grande sécurité avec le

“Système Différentiel”

• Chambre de combustion, foyer et porte

en fonte

• Échangeur de chaleur à faisceau tubulaire

• Compartiment des cendres amovible

• Flamme Verte: Appareil de class 7

DATI TECNICI

750x1077x352

(min-max) 93,3 - 91,0

119

08 -1,8

(kg-l) ~15 - ~24

80

36-85

• Verkleidung aus lackiertem Stahl

• Hermetischem Pellettank

• Raumbelüftung mit Comfort - Funktion

• Kanalisierung mit eigenem Lüfter (Ther-

mostatisch Steuerbar, Möglichkeit die

Kanalisierung auszuschliessen, Reichwei-

te bis zu 8 Metern)

• 3 Abgasanschlussmoeglichkeiten (oben/

hinten/ seitlich links)

• “Differenzial Sicherheits Überwachung” in

der Brennkammer

• Brennraumverkleidung, Brennschale und

Brennraumtür aus Gusseisen

• Rohrbündelwärmeübertrager

• Aschekasten

• Revestimiento en acero barnizado

• Deposito hermético

• Ventilación ambiente (Función confort)

• Canalización con motor independiente

(Termostatizable, Posibilidad de excluirlo,

Canalización hasta 8 metros)

• Posibilidad de conectar la salida de hu-

mos superior, posterior o lateral izquierda.

• Sistema diferencial de seguridad de la

cámara de combustión

• Puerta, brasero y hogar extraíble en hierro

fundido

• Intercambiador de calor de haz de tubos

• Compartimento para cenizas extraíble

BIANCO

CERTIFICAZIONI

BlmSchV

TECNOLOGIA

DN9-P-046

Uscita Fumi Sup / Canalizzazione Post

Uscite laterali

CONTO TERMICO

COLORI

TELECOMANDO

Nuovo telecomando IR Touch retroilluminato

New IR Touch Remote Control with Backlight Display

Nouvelle Télécommande infrarouge IR Touch avec

Affichage Rétro-éclairé

Neue IR-Infrarot Touch-Fernbedienung mit hintergrund-

beleuchtetem Display

Nuevo mando a distancia IR TOUCH con display

retroiluminado

OPTIONAL

Bordeaux

Modulo WiFi “Etichetta nera”

(App “Total Control 2.0”)

Wi-Fi module “Black label”

(App “Total Control 2.0”)

Module WI-FI “Etiquette Noire”

(App “Total Control 2.0”)

WI-FI-Modul “Schwarzes etikett”

(App “Total Control 2.0”)

Módulo Wi-Fi “Etiqueta negra”

(App “Total Control 2.0”)
