COLORI

TELECOMANDO

Nuovo telecomando IR Touch retroilluminato.

New IR Touch Remote Control with Backlight Display

Nouvelle Télécommande infrarouge IR Touch avec Affichage

Rétro-éclairé.

Neue IR-Infrarot Touch-Fernbedienung mit hintergrundbeleuch-

tetem Display.

Nuevo mando a distancia IR TOUCH con display retroiluminado.

OPTIONAL

Modulo WiFi “Etichetta nera”

(App “Total Control 2.0”)

Wi-Fi module “Black label”

(App “Total Control 2.0”)

Module WI-FI “Etiquette Noire”

(App “Total Control 2.0”)

WI-FI-Modul “Schwarzes etikett”

(App “Total Control 2.0”)

Módulo Wi-Fi “Etiqueta negra”

(App “Total Control 2.0”)

24

25

PELLET

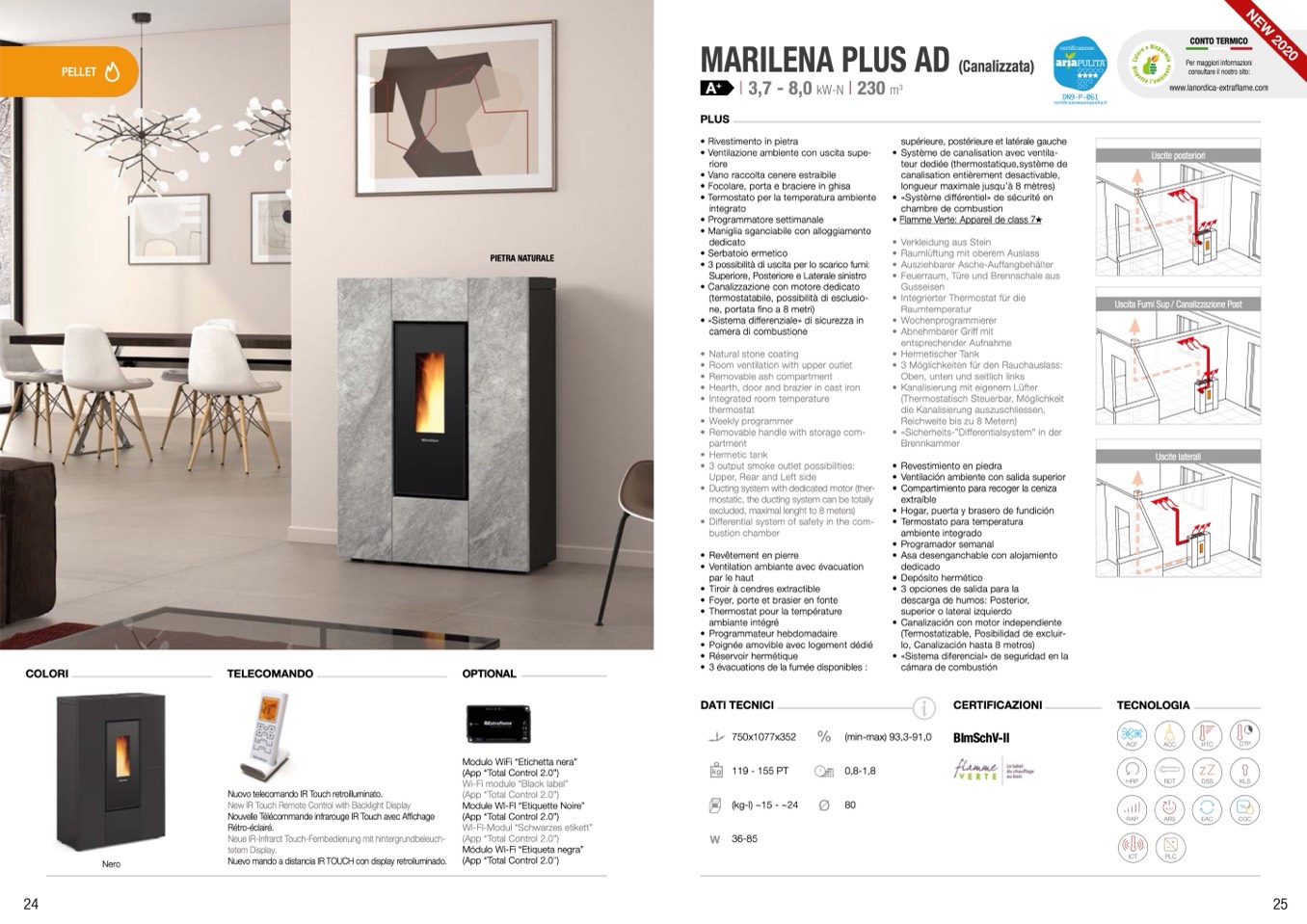

MARILENA PLUS AD

(Canalizzata)

A

+

| 3,7 - 8,0 kW-N | 230 m

3

PLUS

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

Uscite posteriori

Nero

PIETRA NATURALE

• Rivestimento in pietra

• Ventilazione ambiente con uscita supe-

riore

• Vano raccolta cenere estraibile

• Focolare, porta e braciere in ghisa

• Termostato per la temperatura ambiente

integrato

• Programmatore settimanale

• Maniglia sganciabile con alloggiamento

dedicato

• Serbatoio ermetico

• 3 possibilità di uscita per lo scarico fumi:

Superiore, Posteriore e Laterale sinistro

• Canalizzazione con motore dedicato

(termostatabile, possibilità di esclusio-

ne, portata fino a 8 metri)

• «Sistema differenziale» di sicurezza in

camera di combustione

• Natural stone coating

• Room ventilation with upper outlet

• Removable ash compartment

• Hearth, door and brazier in cast iron

• Integrated room temperature

thermostat

• Weekly programmer

• Removable handle with storage com-

partment

• Hermetic tank

• 3 output smoke outlet possibilities:

Upper, Rear and Left side

• Ducting system with dedicated motor (ther-

mostatic, the ducting system can be totally

excluded, maximal lenght to 8 meters)

• Differential system of safety in the com-

bustion chamber

• Revêtement en pierre

• Ventilation ambiante avec évacuation

par le haut

• Tiroir à cendres extractible

• Foyer, porte et brasier en fonte

• Thermostat pour la température

ambiante intégré

• Programmateur hebdomadaire

• Poignée amovible avec logement dédié

• Réservoir hermétique

• 3 évacuations de la fumée disponibles :

DATI TECNICI

750x1077x352

119 - 155 PT

(kg-l) ~15 - ~24

36-85

supérieure, postérieure et latérale gauche

• Système de canalisation avec ventila-

teur dediée (thermostatique,système de

canalisation entièrement desactivable,

longueur maximale jusqu’à 8 mètres)

• «Système différentiel» de sécurité en

chambre de combustion

• Flamme Verte: Appareil de class 7

• Verkleidung aus Stein

• Raumlüftung mit oberem Auslass

• Ausziehbarer Asche-Auffangbehälter

• Feuerraum, Türe und Brennschale aus

Gusseisen

• Integrierter Thermostat für die

Raumtemperatur

• Wochenprogrammierer

• Abnehmbarer Griff mit

entsprechender Aufnahme

• Hermetischer Tank

• 3 Möglichkeiten für den Rauchauslass:

Oben, unten und seitlich links

• Kanalisierung mit eigenem Lüfter

(Thermostatisch Steuerbar, Möglichkeit

die Kanalisierung auszuschliessen,

Reichweite bis zu 8 Metern)

• «Sicherheits-”Differentialsystem” in der

Brennkammer

• Revestimiento en piedra

• Ventilación ambiente con salida superior

• Compartimiento para recoger la ceniza

extraíble

• Hogar, puerta y brasero de fundición

• Termostato para temperatura

ambiente integrado

• Programador semanal

• Asa desenganchable con alojamiento

dedicado

• Depósito hermético

• 3 opciones de salida para la

descarga de humos: Posterior,

superior o lateral izquierdo

• Canalización con motor independiente

(Termostatizable, Posibilidad de excluir-

lo, Canalización hasta 8 metros)

• «Sistema diferencial» de seguridad en la

cámara de combustión

(min-max) 93,3-91,0

0,8-1,8

80

CERTIFICAZIONI

BlmSchV-II

TECNOLOGIA

DN9-P-061

Uscita Fumi Sup / Canalizzazione Post

Uscite laterali

CONTO TERMICO
