CONTO TERMICO

TERMOPRODOTTI

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

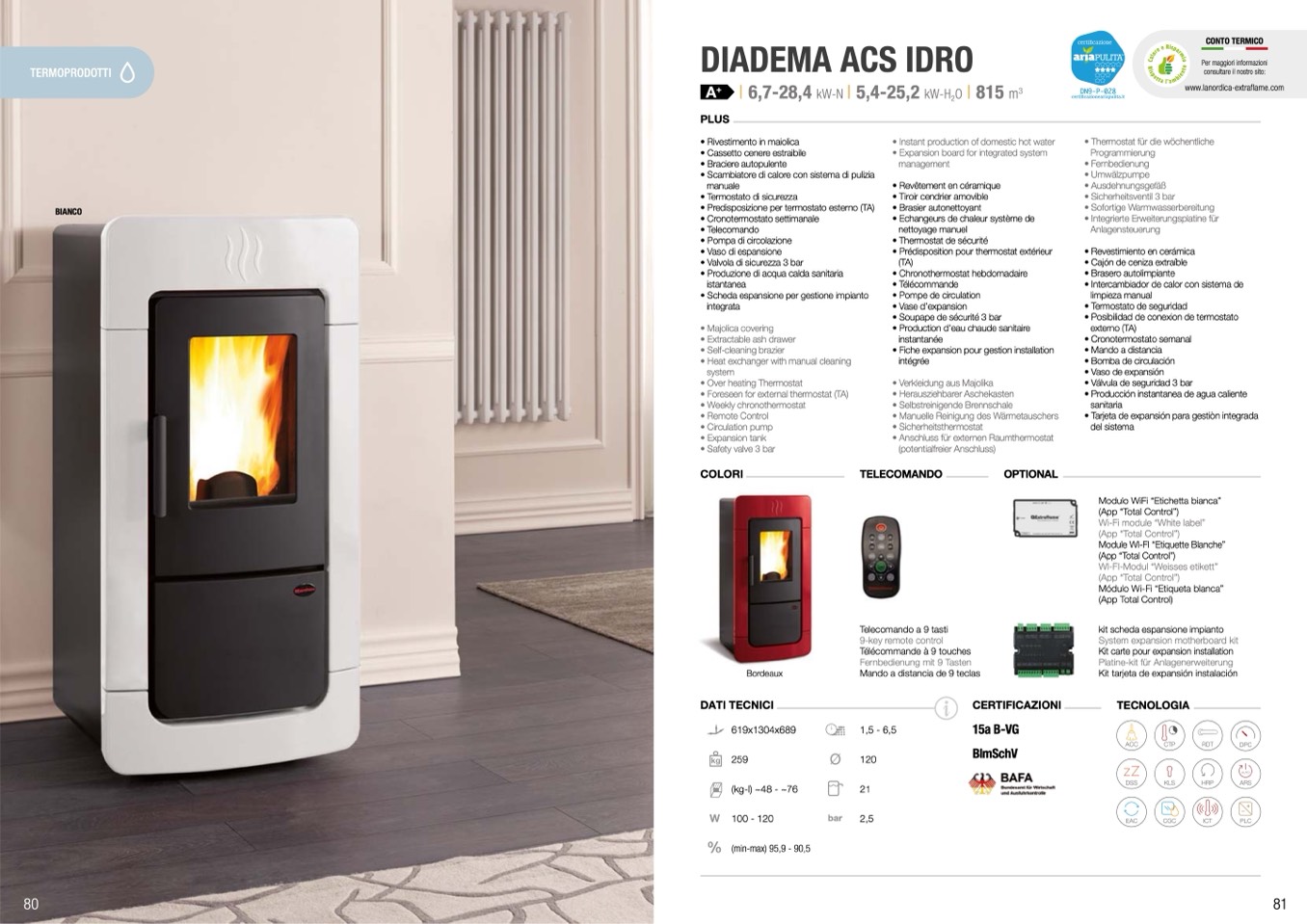

DIADEMA ACS IDRO

A

+

| 6,7-28,4 kW-N | 5,4-25,2 kW-H O | 815 m

3

2

DN9-P-028

• Thermostat für die wöchentliche

Programmierung

• Fernbedienung

• Umwälzpumpe

• Ausdehnungsgefäß

• Sicherheitsventil 3 bar

• Sofortige Warmwasserbereitung

• Integrierte Erweiterungsplatine für

Anlagensteuerung

• Revestimiento en cerámica

• Cajón de ceniza extraíble

• Brasero autolimpiante

• Intercambiador de calor con sistema de

limpieza manual

• Termostato de seguridad

• Posibilidad de conexion de termostato

externo (TA)

• Cronotermostato semanal

• Mando a distancia

• Bomba de circulación

• Vaso de expansión

• Válvula de seguridad 3 bar

• Producción instantanea de agua caliente

sanitaria

• Tarjeta de expansión para gestiòn integrada

del sistema

Modulo WiFi “Etichetta bianca”

(App “Total Control”)

Wi-Fi module “White label”

(App “Total Control”)

Module WI-FI “Etiquette Blanche”

(App “Total Control”)

WI-FI-Modul “Weisses etikett”

(App “Total Control”)

Módulo Wi-Fi “Etiqueta blanca”

(App Total Control)

kit scheda espansione impianto

System expansion motherboard kit

Kit carte pour expansion installation

Platine-kit für Anlagenerweiterung

Kit tarjeta de expansión instalación

TECNOLOGIA

PLUS

• Rivestimento in maiolica

• Cassetto cenere estraibile

• Braciere autopulente

• Scambiatore di calore con sistema di pulizia

manuale

• Termostato di sicurezza

• Predisposizione per termostato esterno (TA)

• Cronotermostato settimanale

• Telecomando

• Pompa di circolazione

• Vaso di espansione

• Valvola di sicurezza 3 bar

• Produzione di acqua calda sanitaria

istantanea

• Scheda espansione per gestione impianto

integrata

• Majolica covering

• Extractable ash drawer

• Self-cleaning brazier

• Heat exchanger with manual cleaning

system

• Over heating Thermostat

• Foreseen for external thermostat (TA)

• Weekly chronothermostat

• Remote Control

• Circulation pump

• Expansion tank

• Safety valve 3 bar

BIANCO

• Instant production of domestic hot water

• Expansion board for integrated system

management

• Revêtement en céramique

• Tiroir cendrier amovible

• Brasier autonettoyant

• Echangeurs de chaleur système de

nettoyage manuel

• Thermostat de sécurité

• Prédisposition pour thermostat extérieur

(TA)

• Chronothermostat hebdomadaire

• Télécommande

• Pompe de circulation

• Vase d’expansion

• Soupape de sécurité 3 bar

• Production d’eau chaude sanitaire

instantanée

• Fiche expansion pour gestion installation

intégrée

• Verkleidung aus Majolika

• Herausziehbarer Aschekasten

• Selbstreinigende Brennschale

• Manuelle Reinigung des Wärmetauschers

• Sicherheitsthermostat

• Anschluss für externen Raumthermostat

(potentialfreier Anschluss)

TELECOMANDO

OPTIONAL

Telecomando a 9 tasti

9-key remote control

Télécommande à 9 touches

Fernbedienung mit 9 Tasten

Mando a distancia de 9 teclas

COLORI

Bordeaux

DATI TECNICI

619x1304x689

259

(kg-l) ~48 - ~76

100 - 120

(min-max) 95,9 - 90,5

1,5 - 6,5

120

21

2,5

CERTIFICAZIONI

15a B-VG

BlmSchV

���

80

81
