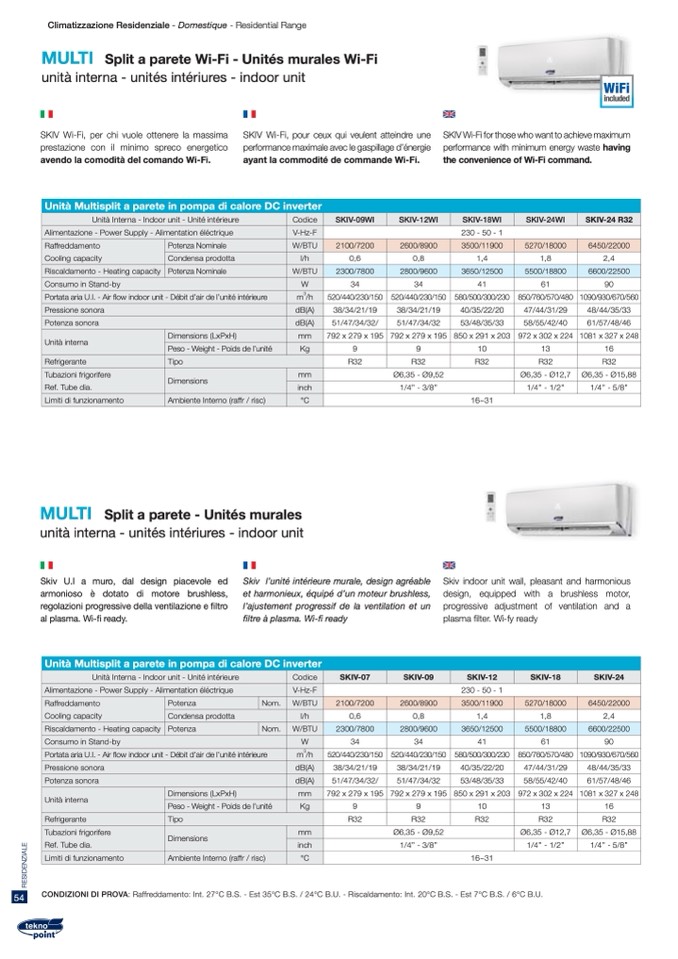

Climatizzazione Residenziale - Domestique - Residential Range

MULTI Split a parete Wi-Fi - Unités murales Wi-Fi

unità interna - unités intériures - indoor unit

WiFi

included

SKIV Wi-Fi, per chi vuole ottenere la massima

prestazione con il minimo spreco energetico

avendo la comodità del comando Wi-Fi.

SKIV Wi-Fi, pour ceux qui veulent atteindre une

performancemaximaleaveclegaspillaged’énergie

ayant la commodité de commande Wi-Fi.

SKIV Wi-Fi for those who want to achieve maximum

performancewithminimumenergywastehaving

the convenience of Wi-Fi command.

Unità Multisplit a parete in pompa di calore DC inverter

Unità Interna - Indoor unit - Unité intérieure Codice SKIV-09WI

SKIV-12WI SKIV-18WI

SKIV-24WI SKIV-24 R32

Alimentazione - Power Supply - Alimentation éléctrique V-Hz-F 230 - 50 - 1

Raffreddamento

Cooling capacity

Potenza Nominale W/BTU 2100/7200

2600/8900 3500/11900

5270/18000 6450/22000

Condensa prodotta l/h 0,6

0,8 1,4

1,8

2,4

Riscaldamento - Heating capacity

Potenza Nominale W/BTU 2300/7800

2800/9600 3650/12500

5500/18800 6600/22500

Consumo in Stand-by W 34

34 41

61

90

Portata aria U.I. - Air flow indoor unit - Débit d’air de l’unité intérieure

3

m /h 520/440/230/150

520/440/230/150 580/500/300/230

850/760/570/480

1090/930/670/560

Pressione sonora dB(A) 38/34/21/19

38/34/21/19 40/35/22/20

47/44/31/29 48/44/35/33

Potenza sonora dB(A) 51/47/34/32/

51/47/34/32 53/48/35/33

58/55/42/40

61/57/48/46

Unità interna

Dimensions (LxPxH) mm 792 x 279 x 195

792 x 279 x 195 850 x 291 x 203

972 x 302 x 224 1081 x 327 x 248

Peso - Weight - Poids de l’unité Kg 9

9 10

13

16

Refrigerante

Tipo R32

R32 R32

R32

R32

Tubazioni frigorifere

Ref. Tube dia.

Dimensions

mm

Ø6,35 - Ø9,52

Ø6,35 - Ø12,7 Ø6,35 - Ø15,88

inch

1/4’’ - 3/8’’

1/4’’ - 1/2’’

1/4’’ - 5/8’’

Limiti di funzionamento

Ambiente Interno (raffr / risc) °C 16~31

MULTI Split a parete - Unités murales

unità interna - unités intériures - indoor unit

Skiv U.I a muro, dal design piacevole ed

armonioso è dotato di motore brushless,

regolazioni progressive della ventilazione e filtro

al plasma. Wi-fi ready.

Skiv l’unité intérieure murale, design agréable

et harmonieux, équipé d’un moteur brushless,

l’ajustement progressif de la ventilation et un

filtre à plasma. Wi-fi ready

Skiv indoor unit wall, pleasant and harmonious

design, equipped with a brushless motor,

progressive adjustment of ventilation and a

plasma filter. Wi-fy ready

Unità Multisplit a parete in pompa di calore DC inverter

Unità Interna - Indoor unit - Unité intérieure Codice SKIV-07

SKIV-09 SKIV-12

SKIV-18 SKIV-24

Alimentazione - Power Supply - Alimentation éléctrique V-Hz-F

230 - 50 - 1

Raffreddamento

Cooling capacity

Potenza Nom. W/BTU 2100/7200

2600/8900 3500/11900

5270/18000 6450/22000

Condensa prodotta l/h 0,6

0,8 1,4

1,8 2,4

Riscaldamento - Heating capacity

Potenza Nom. W/BTU 2300/7800

2800/9600 3650/12500

5500/18800

6600/22500

Consumo in Stand-by W 34

34 41

61 90

Portata aria U.I. - Air flow indoor unit - Débit d’air de l’unité intérieure

3

m /h 520/440/230/150

520/440/230/150 580/500/300/230

850/760/570/480

1090/930/670/560

Pressione sonora dB(A) 38/34/21/19

38/34/21/19 40/35/22/20

47/44/31/29 48/44/35/33

Potenza sonora dB(A) 51/47/34/32/

51/47/34/32 53/48/35/33

58/55/42/40 61/57/48/46

Unità interna

Dimensions (LxPxH) mm 792 x 279 x 195

792 x 279 x 195 850 x 291 x 203

972 x 302 x 224

1081 x 327 x 248

Peso - Weight - Poids de l’unité Kg 9

9 10

13 16

Refrigerante

Tipo R32

R32 R32

R32

R32

Tubazioni frigorifere

Ref. Tube dia.

Dimensions

mm

Ø6,35 - Ø9,52

Ø6,35 - Ø12,7 Ø6,35 - Ø15,88

inch

1/4’’ - 3/8’’

1/4’’ - 1/2’’

1/4’’ - 5/8’’

Limiti di funzionamento

Ambiente Interno (raffr / risc) °C 16~31

54

CONDIZIONI DI PROVA: Raffreddamento: Int. 27°C B.S. - Est 35°C B.S. / 24°C B.U. - Riscaldamento: Int. 20°C B.S. - Est 7°C B.S. / 6°C B.U.
