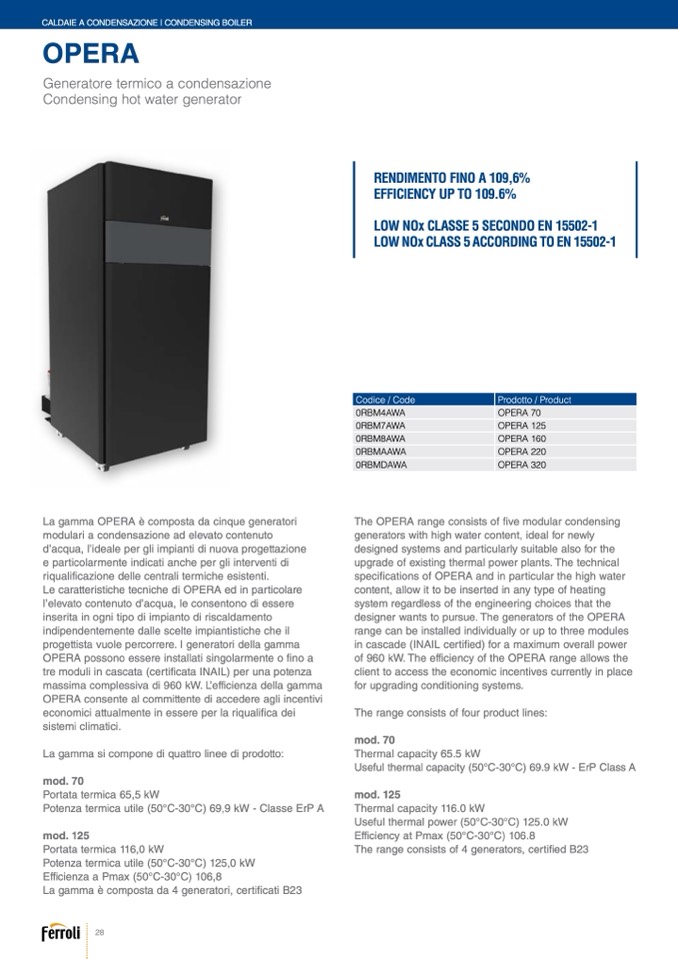

CALDAIE A CONDENSAZIONE | CONDENSING BOILER

OPERA

Generatore termico a condensazione

Condensing hot water generator

RENDIMENTO FINO A 109,6%

EFFICIENCY UP TO 109.6%

LOW NOx CLASSE 5 SECONDO EN 15502-1

LOW NOx CLASS 5 ACCORDING TO EN 15502-1

Codice / Code

Prodotto / Product

0RBM4AWA

OPERA 70

0RBM7AWA

OPERA 125

0RBM8AWA

OPERA 160

0RBMAAWA

OPERA 220

0RBMDAWA

OPERA 320

La gamma OPERA

è composta da cinque generatori

modulari a condensazione ad elevato contenuto

d’acqua, l’ideale per gli impianti di nuova progettazione

e particolarmente indicati anche per gli interventi di

riqualificazione delle centrali termiche esistenti.

Le caratteristiche tecniche di OPERA ed in particolare

l’elevato contenuto d’acqua, le consentono di essere

inserita in ogni tipo di impianto di riscaldamento

indipendentemente dalle scelte impiantistiche che il

progettista vuole percorrere. I generatori della gamma

OPERA possono essere installati singolarmente o fino a

tre moduli in cascata (certificata INAIL) per una potenza

massima complessiva di 960 kW. L’efficienza della gamma

OPERA consente al committente di accedere agli incentivi

economici attualmente in essere per la riqualifica dei

sistemi climatici.

La gamma si compone di quattro linee di prodotto:

mod. 70

Portata termica 65,5 kW

Potenza termica utile (50°C-30°C) 69,9 kW - Classe ErP A

mod. 125

Portata termica 116,0 kW

Potenza termica utile (50°C-30°C) 125,0 kW

Efficienza a Pmax (50°C-30°C) 106,8

La gamma è composta da 4 generatori, certificati B23

The OPERA range consists of five modular condensing

generators with high water content, ideal for newly

designed systems and particularly suitable also for the

upgrade of existing thermal power plants. The technical

specifications of OPERA and in particular the high water

content, allow it to be inserted in any type of heating

system regardless of the engineering choices that the

designer wants to pursue. The generators of the OPERA

range can be installed individually or up to three modules

in cascade (INAIL certified) for a maximum overall power

of 960 kW. The efficiency of the OPERA range allows the

client to access the economic incentives currently in place

for upgrading conditioning systems.

The range consists of four product lines:

mod. 70

Thermal capacity 65.5 kW

Useful thermal capacity (50°C-30°C) 69.9 kW - ErP Class A

mod. 125

Thermal capacity 116.0 kW

Useful thermal power (50°C-30°C) 125.0 kW

Efficiency at Pmax (50°C-30°C) 106.8

The range consists of 4 generators, certified B23

28
