Orientamento degli elementi

Il nostro sistema è dotato di due tenute meccaniche, una alla

pressione dei gas, l’altra contro lo sfilamento degli elementi.

Quest’ultima ha sulla parte femmina quattro imbutiture

inclinate che si accoppiano con le opposte sul lato

maschio. Quando si inseriscono due elementi, uno dei

quali può essere un T, o una o due curve, si possono

scegliere di spostarle su uno dei quattro assi e pertanto,

prima di stringerle con forza, si verifica che la direzione

dell’elemento sia quella desiderata. Se la direzione non è

quella voluta, si ruota di 90° l’elemento e lo si orienta nella

posizione successiva. L’orientamento è estremamente

facile e veloce, anche con i diametri Ø 200 e Ø 250 mm

(vedi esempi d’orientamento di due curve 45°, Immagini

n° 2).

Quando si innestano due elementi si fanno incontrare le

imbutiture inclinate: maschio (6) nelle femmine (3) e con

il successivo movimento rotatorio si manda in battuta

la nervatura, del lato maschio (4), nella sede (1) del lato

femmina, garantendo così la tenuta in pressione a 200 Pa.

(Vedi disegno n° 1).

Orientation of elements

Our system incorporates two mechanical seals, one that

guarantees pressure tightness against gas and the other

against elements loosening. The latter has four slanted

embossing on the female part that are coupled with the

embossing on the male side. When two elements are

inserted, a TEE element or one or two bends, they can

be moved to one of the four axes and therefore, before

tightening them, the direction of the element is verified.

If the direction is not as desired, the element is turned by

90° and moved to the next position. Orientation is extremely

easy and fast, even with diameters 200 and 250 mm

(see orientation examples of two 45° bends, Images no. 2).

When two elements are coupled, the slanted embossing are

placed together: male (6) in female (3) and by then turning,

the rib of the male side (4), is abutted against the housing

(1) of the female side, thus guaranteeing the pressure seal

at 200 Pa. (See drawing no. 1).

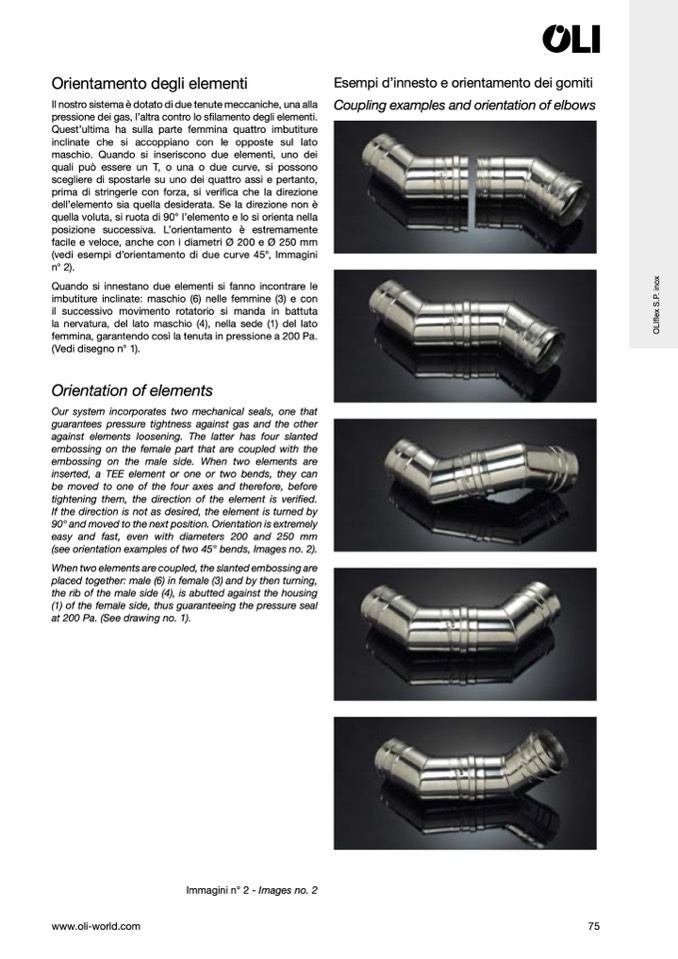

Esempi d’innesto e orientamento dei gomiti

Coupling examples and orientation of elbows

www.oli-world.com

75

Immagini n° 2 - Images no. 2
