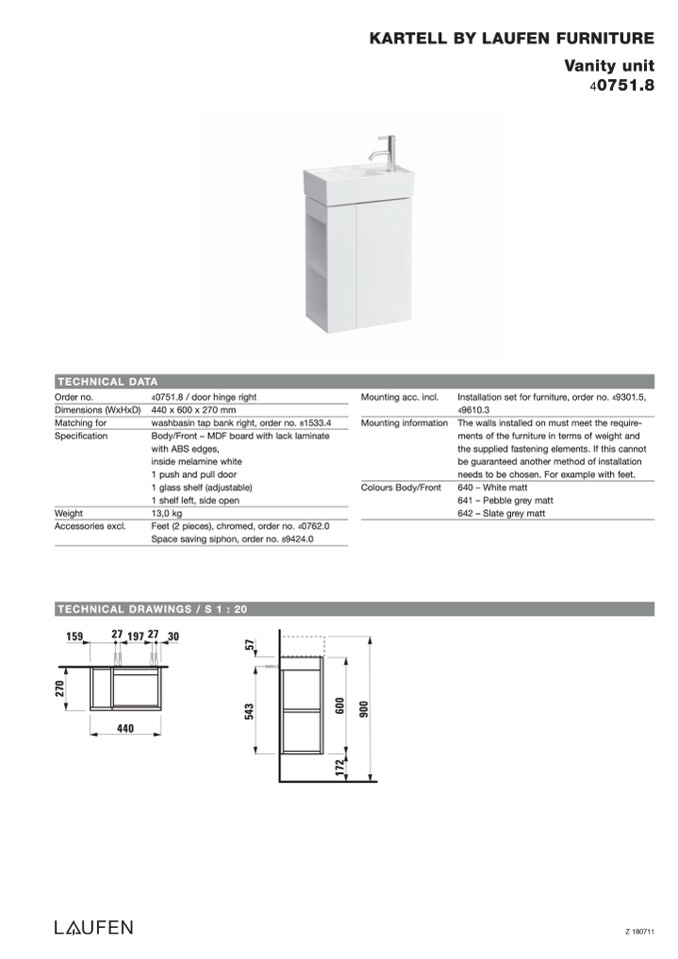

KARTELL BY LAUFEN FURNITURE

Vanity unit

40751.8

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories excl.

4

0751.8 / door hinge right

440 x 600 x 270 mm

washbasin tap bank right, order no. 81533.4

Body/Front – MDF board with lack laminate

with ABS edges,

inside melamine white

1 push and pull door

1 glass shelf (adjustable)

1 shelf left, side open

13,0 kg

Feet (2 pieces), chromed, order no. 40762.0

Space saving siphon, order no. 89424.0

Mounting acc. incl.

Mounting information

Colours Body/Front

Installation set for furniture, order no. 49301.5,

4

9610.3

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

640 – White matt

641 – Pebble grey matt

642 – Slate grey matt

TECHNICAL DRAWINGS / S 1 : 20

159

27 197 27 30

440

Z 180711

1

7

2

6

0

0

9

0

0

5

4

3

5

7

2

7

0
