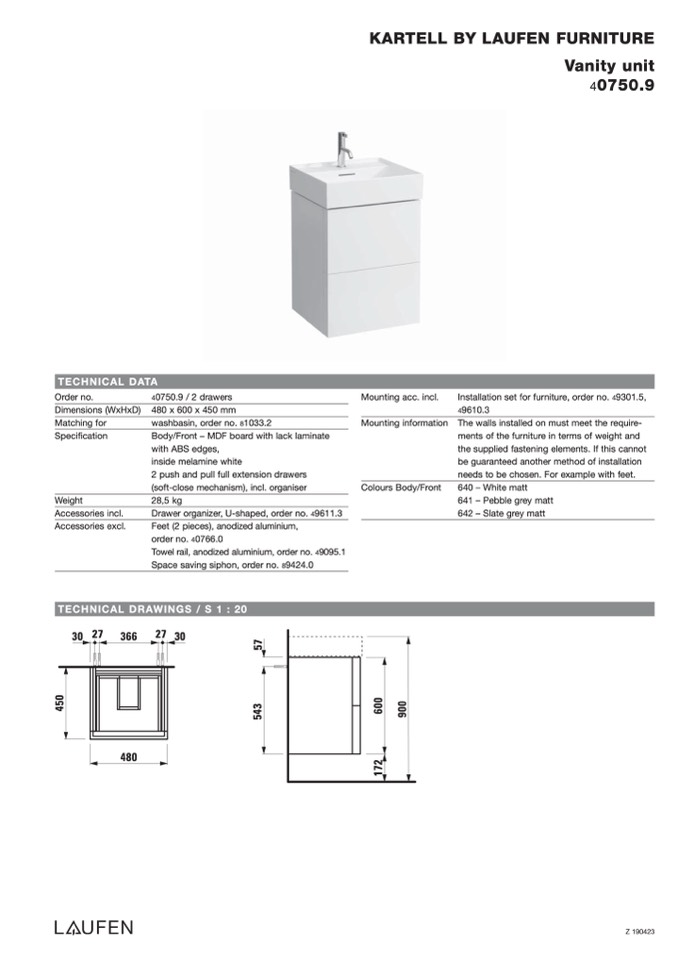

40750.9
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
Accessories incl.
Accessories excl.
4
0750.9 / 2 drawers
480 x 600 x 450 mm
washbasin, order no. 81033.2
Body/Front – MDF board with lack laminate
with ABS edges,
inside melamine white
2 push and pull full extension drawers
(soft-close mechanism), incl. organiser
28,5 kg
Drawer organizer, U-shaped, order no. 49611.3
Feet (2 pieces), anodized aluminium,
order no. 40766.0
Towel rail, anodized aluminium, order no. 49095.1
Space saving siphon, order no. 89424.0
Mounting acc. incl.
Mounting information
Colours Body/Front
Installation set for furniture, order no. 49301.5,
4
9610.3
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
640 – White matt
641 – Pebble grey matt
642 – Slate grey matt
TECHNICAL DRAWINGS / S 1 : 20
3
0
27
366
2730
480
Z 190423
1
7
2
6
0
0
9
0
0
4
5
0
5
4
3
5
7
