TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

4

0608.1 / 1 drawer

1177 x 347 x 457 mm

Washbasin bowl, order no. 81285.2, 81285.3

Body – inside melamine dark grey particle board,

outside 6 mm MDF panels

Front – inside melamine dark grey

Traffic grey: MDF panel, lacquered matt

Blacked oak: oak veneer coated particle

board with solid oak frame

White glossy: MDF panel, lacquered

1 cut out left

1 push and pull full extension drawer

627, 631 – 39,5 kg

628 – 38,5 kg

Accessories excl.

Mounting acc. incl.

Mounting information

Colours Body/Front/

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49114.0,

4

9301.5

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

627 – Traffic grey

628 – Blacked oak

631 – White glossy

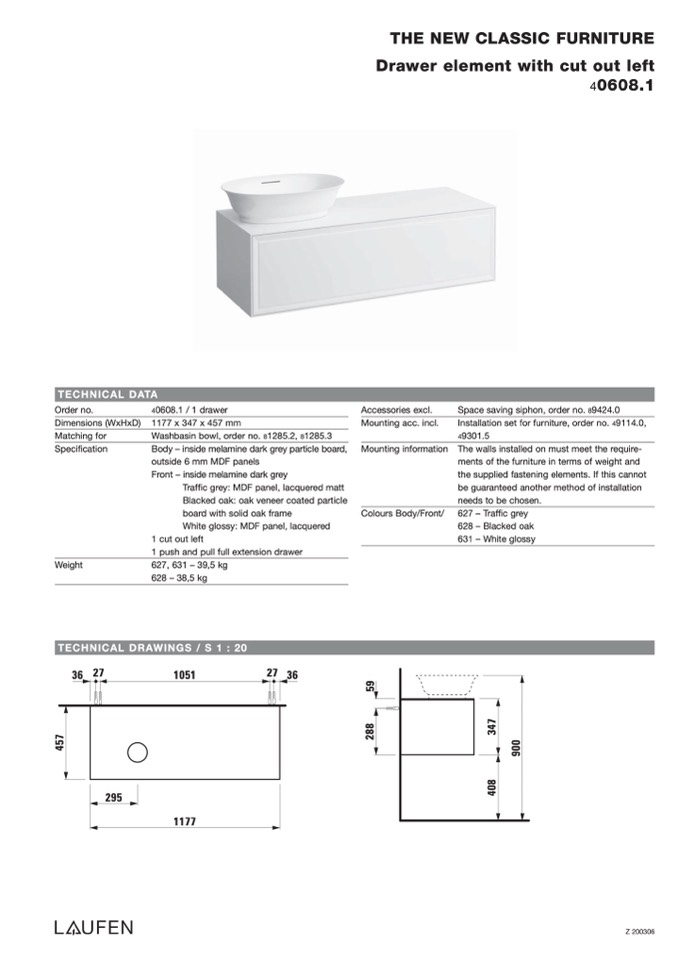

THE NEW CLASSIC FURNITURE

Drawer element with cut out left

40608.1

TECHNICAL DRAWINGS / S 1 : 20

36 27

1051

27 36

295

1177

Z 200306

4

0

8

3

4

7

4

5

7

9

0

0

2

8

8

5

9
