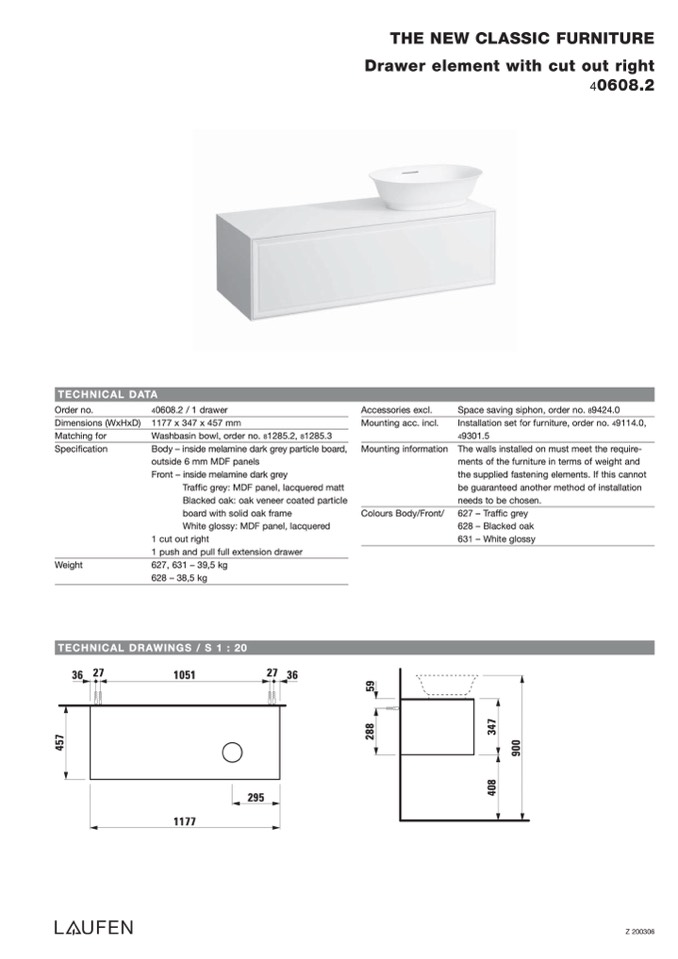

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
4
0608.2 / 1 drawer
1177 x 347 x 457 mm
Washbasin bowl, order no. 81285.2, 81285.3
Body – inside melamine dark grey particle board,
outside 6 mm MDF panels
Front – inside melamine dark grey
Traffic grey: MDF panel, lacquered matt
Blacked oak: oak veneer coated particle
board with solid oak frame
White glossy: MDF panel, lacquered
1 cut out right
1 push and pull full extension drawer
627, 631 – 39,5 kg
628 – 38,5 kg
Accessories excl.
Mounting acc. incl.
Mounting information
Colours Body/Front/
Space saving siphon, order no. 89424.0
Installation set for furniture, order no. 49114.0,
4
9301.5
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
627 – Traffic grey
628 – Blacked oak
631 – White glossy
40608.2
TECHNICAL DRAWINGS / S 1 : 20
36 27
1051
27 36
1177
295
Z 200306
4
0
8
3
4
7
4
5
7
9
0
0
2
8
8
5
9
