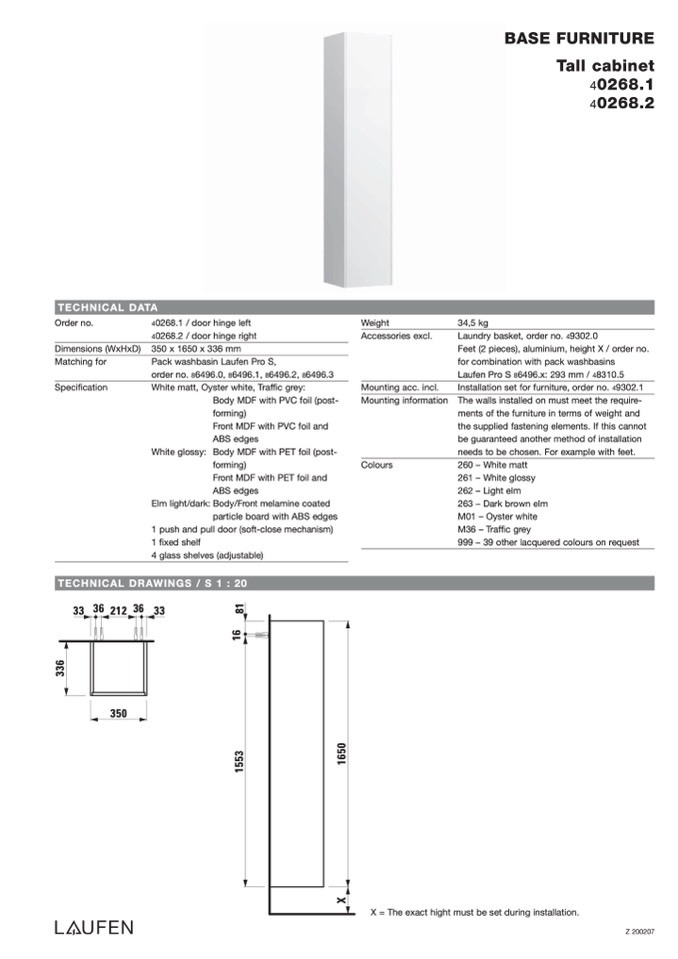

BASE FURNITURE

Tall cabinet

40268.1

40268.2

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

4

0268.1 / door hinge left

4

0268.2 / door hinge right

350 x 1650 x 336 mm

Pack washbasin Laufen Pro S,

order no. 86496.0, 86496.1, 86496.2, 86496.3

White matt, Oyster white, Traffic grey:

Body MDF with PVC foil (post-

forming)

Front MDF with PVC foil and

ABS edges

White glossy: Body MDF with PET foil (post-

forming)

Front MDF with PET foil and

ABS edges

Elm light/dark: Body/Front melamine coated

particle board with ABS edges

1 push and pull door (soft-close mechanism)

1 fixed shelf

4 glass shelves (adjustable)

Weight

Accessories excl.

Mounting acc. incl.

Mounting information

Colours

34,5 kg

Laundry basket, order no. 49302.0

Feet (2 pieces), aluminium, height X / order no.

for combination with pack washbasins

Laufen Pro S 86496.x: 293 mm / 48310.5

Installation set for furniture, order no. 49302.1

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

260 – White matt

261 – White glossy

262 – Light elm

263 – Dark brown elm

M01 – Oyster white

M36 – Traffic grey

999 – 39 other lacquered colours on request

TECHNICAL DRAWINGS / S 1 : 20

33 36 212 36 33

350

X = The exact hight must be set during installation.

Z 200207

X

1

6

5

0

1

5

5

3

1

6

8

1

3

3

6
