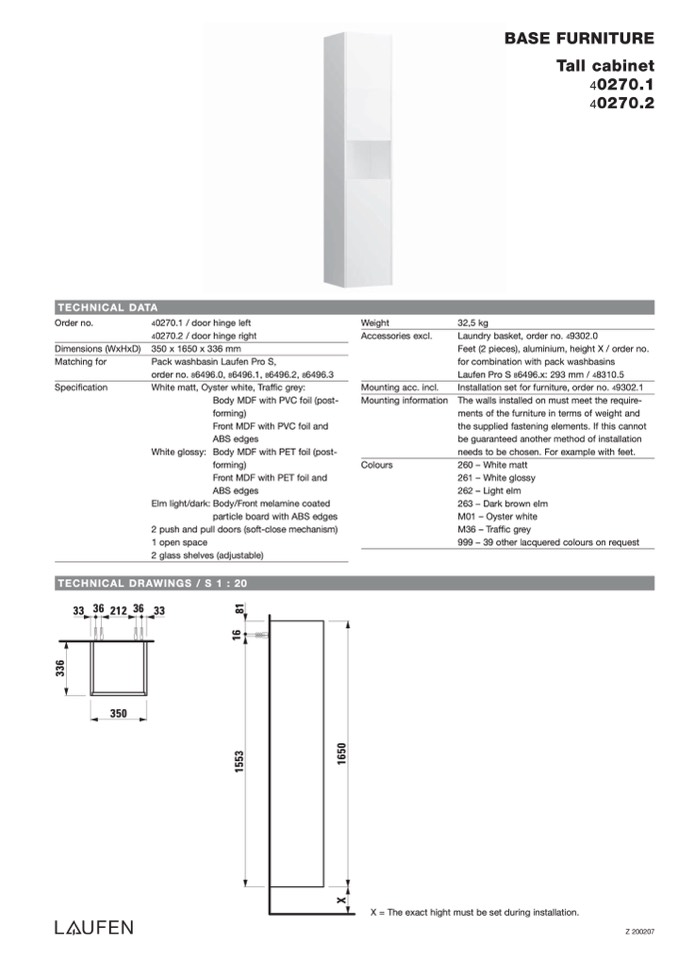

40270.1
40270.2
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
4
0270.1 / door hinge left
4
0270.2 / door hinge right
350 x 1650 x 336 mm
Pack washbasin Laufen Pro S,
order no. 86496.0, 86496.1, 86496.2, 86496.3
White matt, Oyster white, Traffic grey:
Body MDF with PVC foil (post-
forming)
Front MDF with PVC foil and
ABS edges
White glossy: Body MDF with PET foil (post-
forming)
Front MDF with PET foil and
ABS edges
Elm light/dark: Body/Front melamine coated
particle board with ABS edges
2 push and pull doors (soft-close mechanism)
1 open space
2 glass shelves (adjustable)
Weight
Accessories excl.
Mounting acc. incl.
Mounting information
Colours
32,5 kg
Laundry basket, order no. 49302.0
Feet (2 pieces), aluminium, height X / order no.
for combination with pack washbasins
Laufen Pro S 86496.x: 293 mm / 48310.5
Installation set for furniture, order no. 49302.1
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
260 – White matt
261 – White glossy
262 – Light elm
263 – Dark brown elm
M01 – Oyster white
M36 – Traffic grey
999 – 39 other lacquered colours on request
TECHNICAL DRAWINGS / S 1 : 20
33 36 212 36 33
350
X = The exact hight must be set during installation.
Z 200207
X
1
6
5
0
1
5
5
3
1
6
8
1
3
3
6
