Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0903.0 / without cut out

4

0903.2 / 1 cut out right

1200 x 360 x 380 mm

see table below

Body/Front – lacquered surface veneer with

solid wood edges

Slim front with a 4 mm rim

1 push and pull full extension drawer

without or with cut out

28,0 kg

Shelf L shaped for drawer, with pre-drilled holes in

the back (left and right) for optional power socket,

depth 90 mm, order no. 40924.5

depth 150 mm, order no. 40924.6

Accessories excl.

Mounting acc. incl.

Mounting information

Power socket (EU), IP44, order no. 49298.4

Power socket (CH), IP44, order no. 49298.5

Drawer separations (not recommended with shelf)

large, order no. 40920.1

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49120.6

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

250 – Light oak

251 – Dark oak

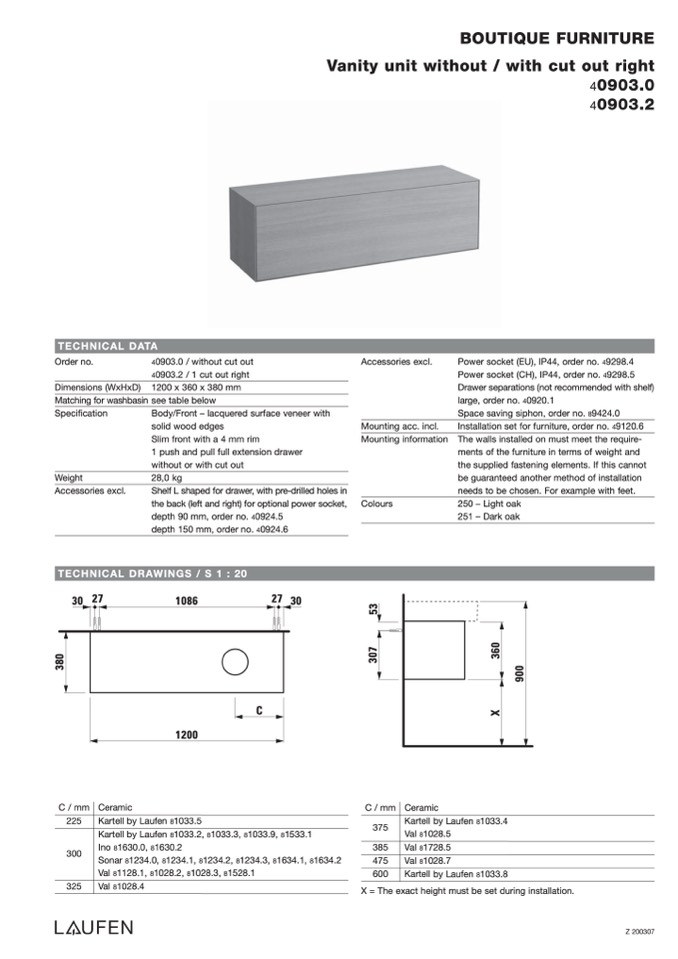

BOUTIQUE FURNITURE

Vanity unit without / with cut out right

40903.0

40903.2

TECHNICAL DATA

Colours

TECHNICAL DRAWINGS / S 1 : 20

30 27

1086

27 30

C

1200

C / mm

225

300

325

Ceramic

Kartell by Laufen 81033.5

Kartell by Laufen 81033.2, 81033.3, 81033.9, 81533.1

Ino 81630.0, 81630.2

Sonar 81234.0, 81234.1, 81234.2, 81234.3, 81634.1, 81634.2

Val 81128.1, 81028.2, 81028.3, 81528.1

Val 81028.4

C / mm

375

385

475

600

Ceramic

Kartell by Laufen 81033.4

Val 81028.5

Val 81728.5

Val 81028.7

Kartell by Laufen 81033.8

X = The exact height must be set during installation.

Z 200307

X

3

6

0

9

0

0

3

8

0

3

0

7

5

3
