Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0903.0 / without cut out

4

0903.4 / 2 cut outs

1200 x 360 x 380 mm

see table below

Body/Front – lacquered surface veneer with

solid wood edges

Slim front with a 4 mm rim

1 push and pull full extension drawer

without or with cut out

28,0 kg

Shelf L shaped for drawer, with pre-drilled holes in

the back (left and right) for optional power socket,

depth 90 mm, order no. 40924.5

depth 150 mm, order no. 40924.6

Accessories excl.

Mounting acc. incl.

Mounting information

Colours

Power socket (EU), IP44, order no. 49298.4

Power socket (CH), IP44, order no. 49298.5

Drawer separations (not recommended with shelf)

large, order no. 40920.1

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49120.6

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

250 – Light oak

251 – Dark oak

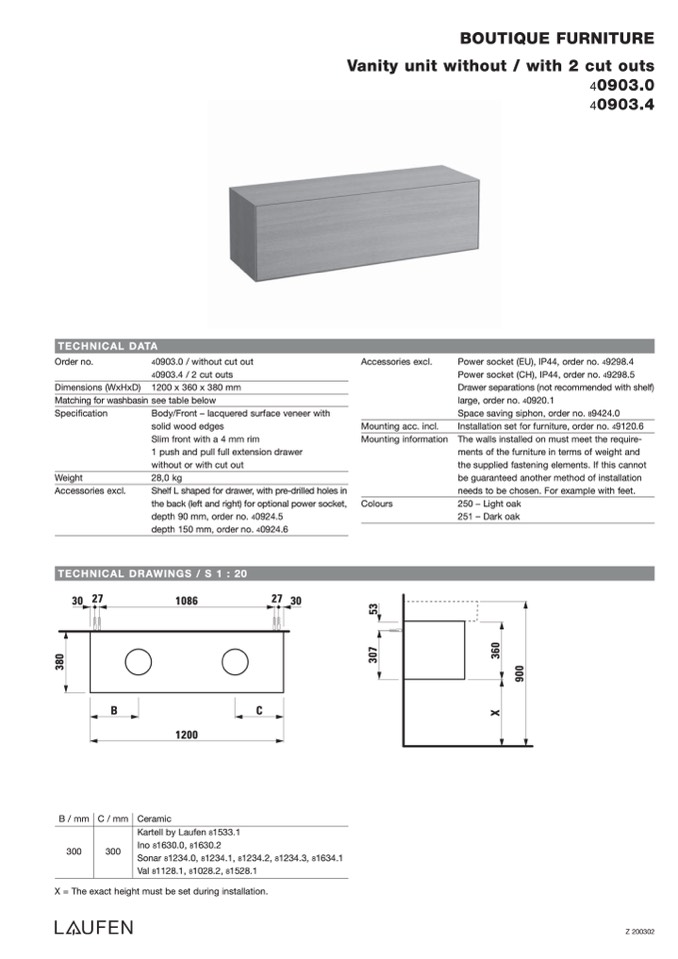

BOUTIQUE FURNITURE

Vanity unit without / with 2 cut outs

40903.0

40903.4

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

30 27

1086

27 30

B

C

1200

B / mm

300

C / mm Ceramic

Kartell by Laufen 81533.1

300

Ino 81630.0, 81630.2

Sonar 81234.0, 81234.1, 81234.2, 81234.3, 81634.1

Val 81128.1, 81028.2, 81528.1

X = The exact height must be set during installation.

Z 200302

X

3

6

0

9

0

0

3

8

0

3

0

7

5

3
