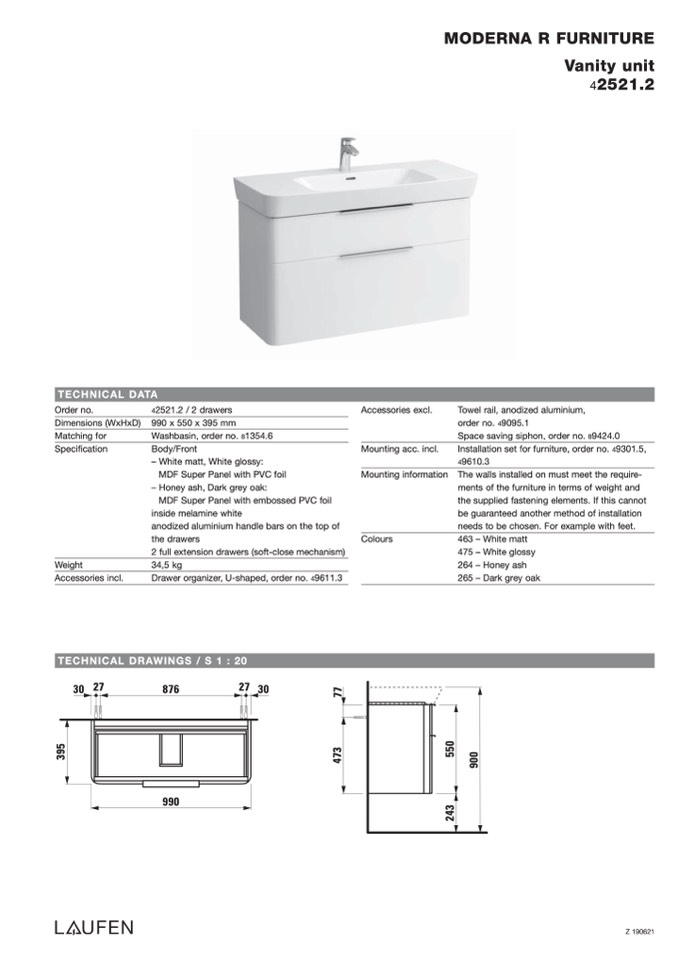

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
Accessories incl.
4
2521.2 / 2 drawers
990 x 550 x 395 mm
Washbasin, order no. 81354.6
Body/Front
– White matt, White glossy:
MDF Super Panel with PVC foil
– Honey ash, Dark grey oak:
MDF Super Panel with embossed PVC foil
inside melamine white
anodized aluminium handle bars on the top of
the drawers
2 full extension drawers (soft-close mechanism)
34,5 kg
Drawer organizer, U-shaped, order no. 49611.3
Accessories excl.
Mounting acc. incl.
Mounting information
Colours
Towel rail, anodized aluminium,
order no. 49095.1
Space saving siphon, order no. 89424.0
Installation set for furniture, order no. 49301.5,
4
9610.3
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
463 – White matt
475 – White glossy
264 – Honey ash
265 – Dark grey oak
42521.2
TECHNICAL DRAWINGS / S 1 : 20
30 27
876
27 30
990
Z 190621
2
4
3
5
5
0
9
0
0
3
9
5
4
7
3
7
7
