Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories incl.

4

2522.4 / 4 drawers

1193 x 550 x 395 mm

Double washbasin, order no. 81454.2

Body/Front

– White matt, White glossy:

MDF Super Panel with PVC foil

– Honey ash, Dark grey oak:

MDF Super Panel with embossed PVC foil

inside melamine white

anodized aluminium handle bars on the top of

the drawers

4 full extension drawers (soft-close mechanism)

47,5 kg

2x drawer organizers, U-shaped,

order no. 49611.3

Accessories excl.

Mounting acc. incl.

Mounting information

Colours

Towel rail, anodized aluminium,

order no. 49095.1

2x space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49301.5,

4

9614.4

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White matt

475 – White glossy

264 – Honey ash

265 – Dark grey oak

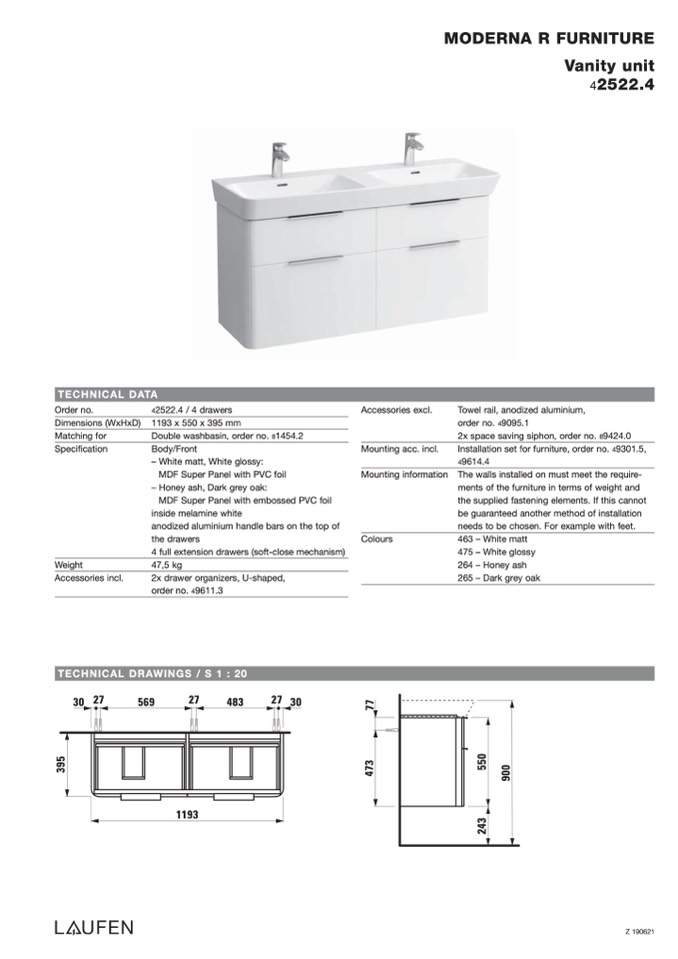

MODERNA R FURNITURE

Vanity unit

42522.4

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

30 27

569

27

483

27 30

1193

Z 190621

2

4

3

5

5

0

9

0

0

3

9

5

4

7

3

7

7
