Order no.

Dimensions (WxHxD)

Specification

Weight

Mounting acc. incl.

4

2523.1 / door hinge left

4

2523.2 / door hinge right

350 x 1650 x 337 mm

Korpus/Front

– Weiss matt, Weiss Hochglanz:

MDF Super Panel mit PVC-Folie

– Esche Honig, Eiche dunkelgrau:

MDF Super Panel mit PVC-Folie geprägt

inside melamine white

1 push and pull door (soft-close mechanism)

1 fixed shelf

4 glass shelves (adjustable)

35,5 kg

Installation set for furniture, order no. 49302.1

Mounting information

Colours

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White matt

475 – White glossy

264 – Honey ash

265 – Dark grey oak

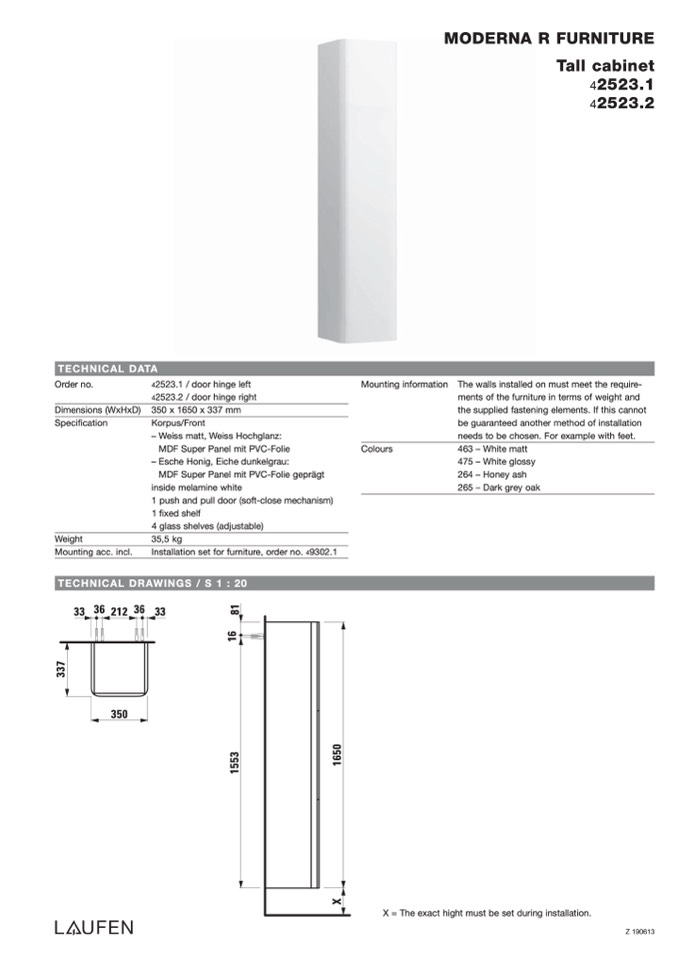

MODERNA R FURNITURE

Tall cabinet

42523.1

42523.2

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

33 36 212 36 33

350

X = The exact hight must be set during installation.

Z 190613

X

1

6

5

0

1

5

5

3

1

6

8

1

3

3

7
