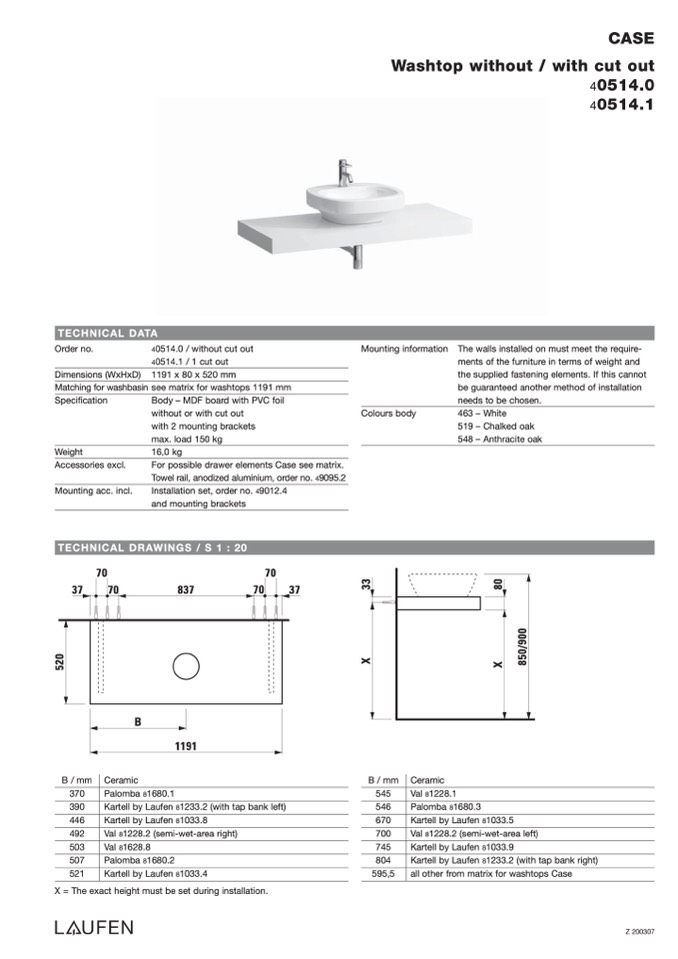

CASE

Washtop without / with cut out

40514.0

40514.1

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0514.0 / without cut out

4

0514.1 / 1 cut out

1191 x 80 x 520 mm

see matrix for washtops 1191 mm

Body – MDF board with PVC foil

without or with cut out

with 2 mounting brackets

max. load 150 kg

16,0 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Installation set, order no. 49012.4

Mounting information

Colours body

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

and mounting brackets

TECHNICAL DRAWINGS / S 1 : 20

70

70

37

70

837

70

37

B

1191

B / mm

370

390

446

492

503

507

521

Ceramic

Palomba 81680.1

Kartell by Laufen 81233.2 (with tap bank left)

Kartell by Laufen 81033.8

Val 81228.2 (semi-wet-area right)

Val 81628.8

Palomba 81680.2

Kartell by Laufen 81033.4

B / mm

545

546

670

700

745

804

595,5

Ceramic

Val 81228.1

Palomba 81680.3

Kartell by Laufen 81033.5

Val 81228.2 (semi-wet-area left)

Kartell by Laufen 81033.9

Kartell by Laufen 81233.2 (with tap bank right)

all other from matrix for washtops Case

X = The exact height must be set during installation.
