TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0514.0 / without cut out

4

0514.2 / 1 cut out left

1191 x 80 x 520 mm

see matrix for washtops 1191 mm

Body – MDF board with PVC foil

without or with cut out

with 2 mounting brackets

max. load 150 kg

16,0 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Mounting acc. incl.

Mounting information

Colours body

Installation set, order no. 49012.4

and mounting brackets

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

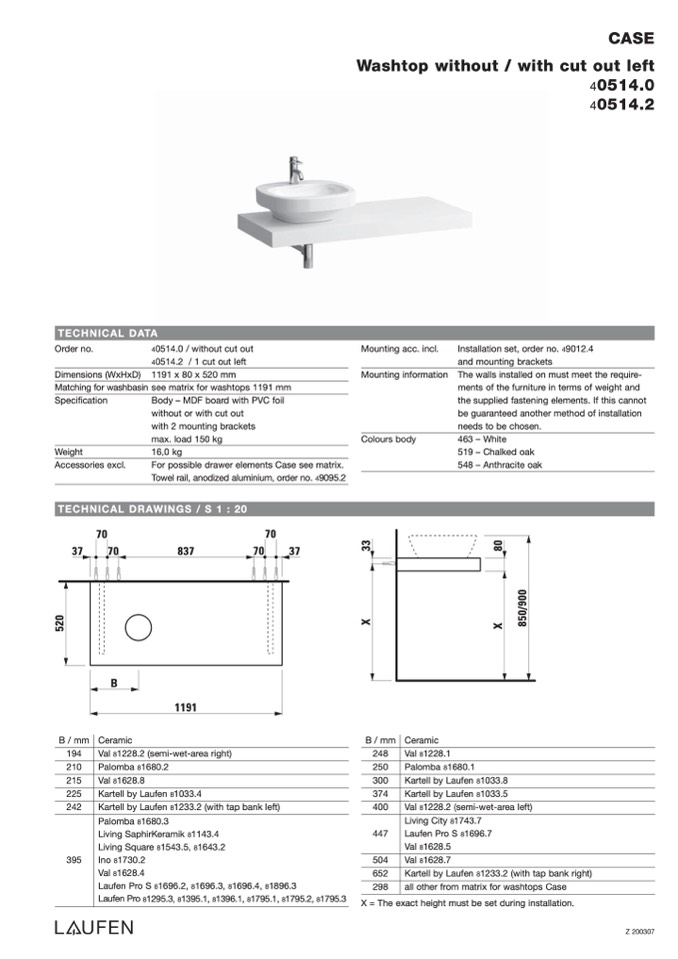

CASE

Washtop without / with cut out left

40514.0

40514.2

TECHNICAL DRAWINGS / S 1 : 20

70

70

37

70

837

70

37

B

1191

B / mm

194

210

215

225

242

395

Ceramic

Val 81228.2 (semi-wet-area right)

Palomba 81680.2

Val 81628.8

Kartell by Laufen 81033.4

Kartell by Laufen 81233.2 (with tap bank left)

Palomba 81680.3

Living SaphirKeramik 81143.4

Living Square 81543.5, 81643.2

Ino 81730.2

Val 81628.4

Laufen Pro S 81696.2, 81696.3, 81696.4, 81896.3

Laufen Pro 81295.3, 81395.1, 81396.1, 81795.1, 81795.2, 81795.3

B / mm

248

250

300

374

400

447

504

652

298

Ceramic

Val 81228.1

Palomba 81680.1

Kartell by Laufen 81033.8

Kartell by Laufen 81033.5

Val 81228.2 (semi-wet-area left)

Living City 81743.7

Laufen Pro S 81696.7

Val 81628.5

Val 81628.7

Kartell by Laufen 81233.2 (with tap bank right)

all other from matrix for washtops Case

X = The exact height must be set during installation.

Z 200307

5

2

0

X

3

3

X

8

0

8

5

0

/

9

0

0
