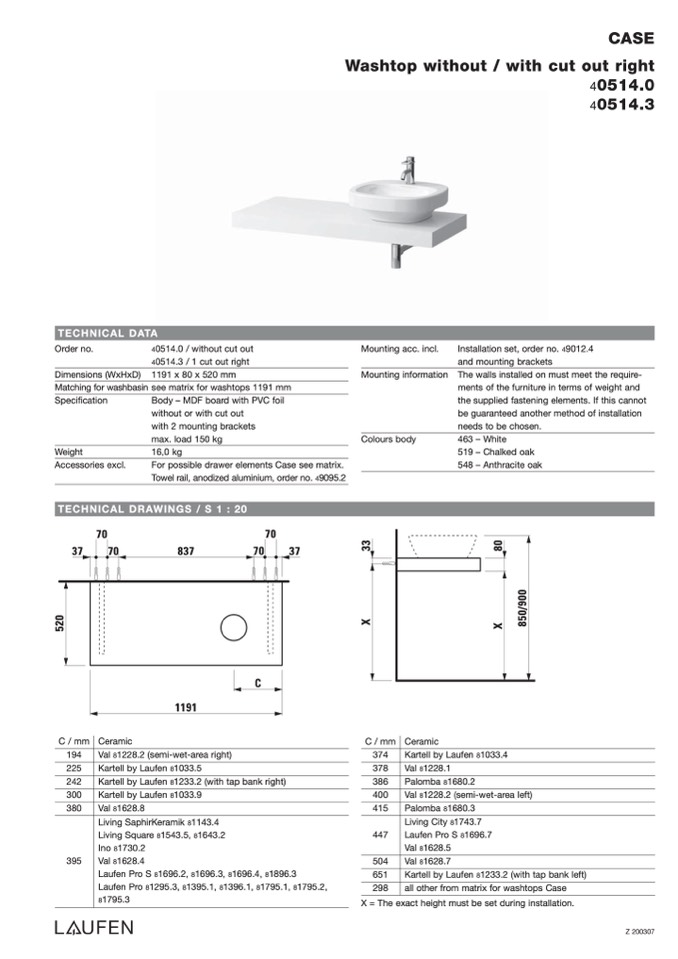

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0514.0 / without cut out

4

0514.3 / 1 cut out right

1191 x 80 x 520 mm

see matrix for washtops 1191 mm

Body – MDF board with PVC foil

without or with cut out

with 2 mounting brackets

max. load 150 kg

16,0 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Mounting acc. incl.

Mounting information

Colours body

Installation set, order no. 49012.4

and mounting brackets

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Washtop without / with cut out right

40514.0

40514.3

TECHNICAL DRAWINGS / S 1 : 20

70

70

37

70

837

70

37

1191

C

C / mm

194

225

242

300

380

395

Ceramic

Val 81228.2 (semi-wet-area right)

Kartell by Laufen 81033.5

Kartell by Laufen 81233.2 (with tap bank right)

Kartell by Laufen 81033.9

Val 81628.8

Living SaphirKeramik 81143.4

Living Square 81543.5, 81643.2

Ino 81730.2

Val 81628.4

Laufen Pro S 81696.2, 81696.3, 81696.4, 81896.3

Laufen Pro 81295.3, 81395.1, 81396.1, 81795.1, 81795.2,

8

1795.3

C / mm

374

378

386

400

415

447

504

651

298

Ceramic

Kartell by Laufen 81033.4

Val 81228.1

Palomba 81680.2

Val 81228.2 (semi-wet-area left)

Palomba 81680.3

Living City 81743.7

Laufen Pro S 81696.7

Val 81628.5

Val 81628.7

Kartell by Laufen 81233.2 (with tap bank left)

all other from matrix for washtops Case

X = The exact height must be set during installation.
