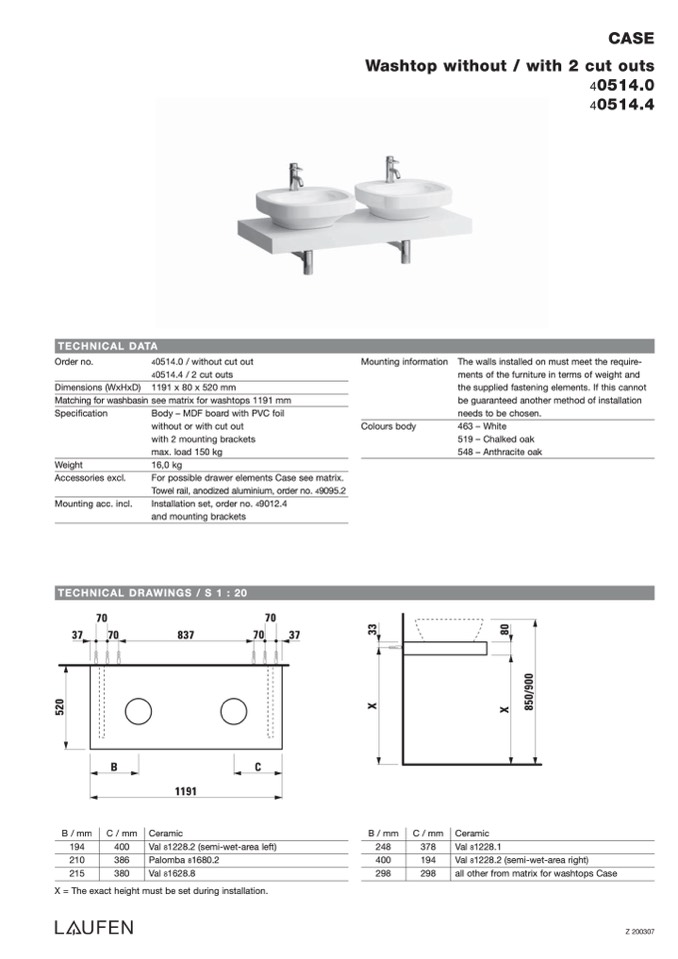

CASE

Washtop without / with 2 cut outs

40514.0

40514.4

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0514.0 / without cut out

4

0514.4 / 2 cut outs

1191 x 80 x 520 mm

see matrix for washtops 1191 mm

Body – MDF board with PVC foil

without or with cut out

with 2 mounting brackets

max. load 150 kg

16,0 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Installation set, order no. 49012.4

Mounting information

Colours body

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

and mounting brackets

TECHNICAL DRAWINGS / S 1 : 20

70

70

37

70

837

70

37

B

1191

C

B / mm

194

210

215

C / mm

Ceramic

Val 81228.2 (semi-wet-area left)

Palomba 81680.2

Val 81628.8

B / mm

248

400

298

C / mm

Ceramic

Val 81228.1

Val 81228.2 (semi-wet-area right)

all other from matrix for washtops Case

400

386

380

378

194

298

X = The exact height must be set during installation.
