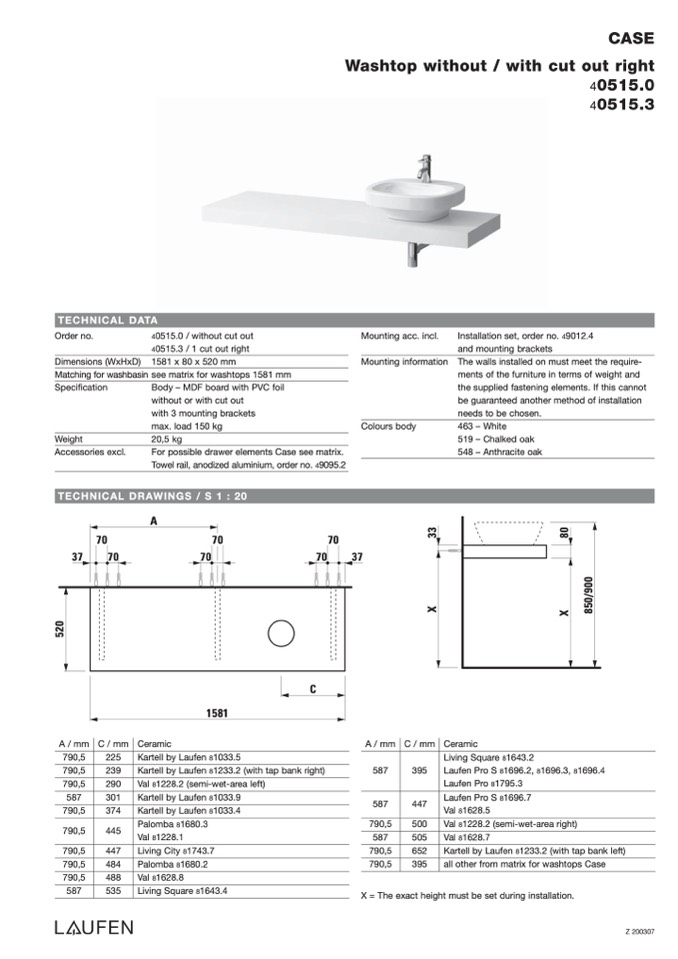

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0515.0 / without cut out

4

0515.3 / 1 cut out right

1581 x 80 x 520 mm

see matrix for washtops 1581 mm

Body – MDF board with PVC foil

without or with cut out

with 3 mounting brackets

max. load 150 kg

20,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Mounting acc. incl.

Mounting information

Colours body

Installation set, order no. 49012.4

and mounting brackets

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Washtop without / with cut out right

40515.0

40515.3

TECHNICAL DRAWINGS / S 1 : 20

A

70

70

70

37

70

70

70

37

C

1581

A / mm

790,5

790,5

790,5

587

790,5

790,5

790,5

790,5

790,5

587

C / mm

Ceramic

Kartell by Laufen 81033.5

Kartell by Laufen 81233.2 (with tap bank right)

Val 81228.2 (semi-wet-area left)

Kartell by Laufen 81033.9

Kartell by Laufen 81033.4

Palomba 81680.3

Val 81228.1

Living City 81743.7

Palomba 81680.2

Val 81628.8

Living Square 81643.4

A / mm

587

587

790,5

587

790,5

790,5

C / mm

Ceramic

Living Square 81643.2

Laufen Pro S 81696.2, 81696.3, 81696.4

Laufen Pro 81795.3

Laufen Pro S 81696.7

Val 81628.5

Val 81228.2 (semi-wet-area right)

Val 81628.7

Kartell by Laufen 81233.2 (with tap bank left)

all other from matrix for washtops Case

225

239

290

301

374

445

447

484

488

535

395

447

500

505

652

395

X = The exact height must be set during installation.
