TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0515.0 / without cut out

4

0515.4 / 2 cut outs

1581 x 80 x 520 mm

see matrix for washtops 1581 mm

Body – MDF board with PVC foil

without or with cut out

with 3 mounting brackets

max. load 150 kg

20,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Installation set, order no. 49012.4

and mounting brackets

Mounting information

Colours body

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

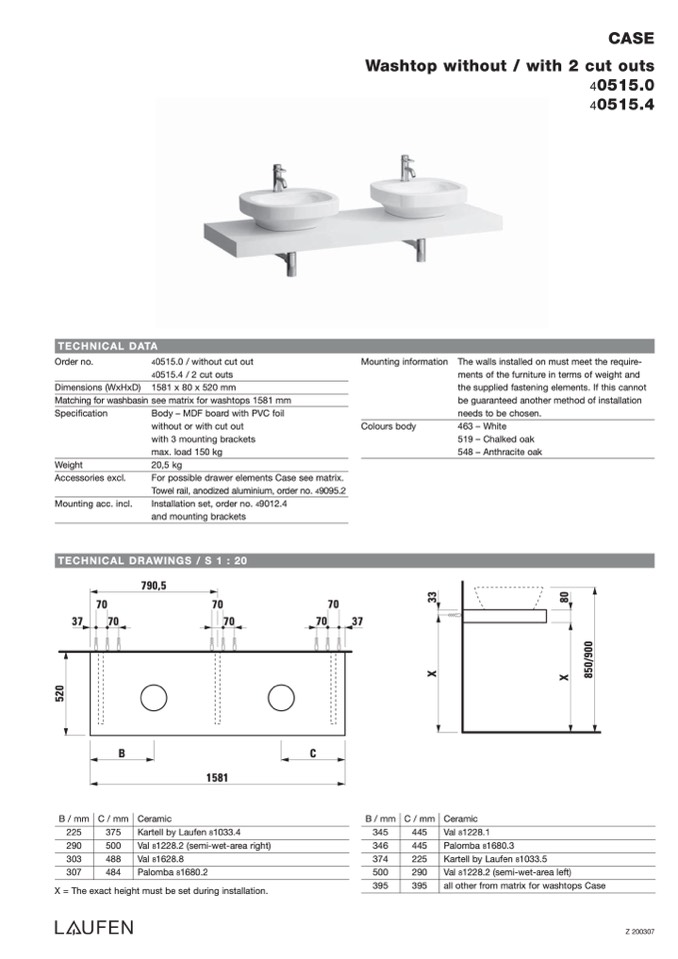

CASE

Washtop without / with 2 cut outs

40515.0

40515.4

TECHNICAL DRAWINGS / S 1 : 20

790,5

70

70

70

37

70

70

70

37

B

1581

C

B / mm

225

290

303

307

C / mm

Ceramic

Kartell by Laufen 81033.4

Val 81228.2 (semi-wet-area right)

Val 81628.8

Palomba 81680.2

B / mm

345

346

374

500

395

C / mm

Ceramic

Val 81228.1

Palomba 81680.3

Kartell by Laufen 81033.5

Val 81228.2 (semi-wet-area left)

all other from matrix for washtops Case

375

500

488

484

445

445

225

290

395

X = The exact height must be set during installation.

Z 200307

5

2

0

X

3

3

X

8

0

8

5

0

/

9

0

0
