TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0516.0 / without cut out

4

0516.1 / 1 cut out

1787 x 80 x 520 mm

see matrix for washtops 1787 mm

Body – MDF board with PVC foil

without or with cut out

with 3 mounting brackets

max. load 150 kg

22,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Mounting acc. incl.

Mounting information

Colours body

Installation set, order no. 49012.4

and mounting brackets

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

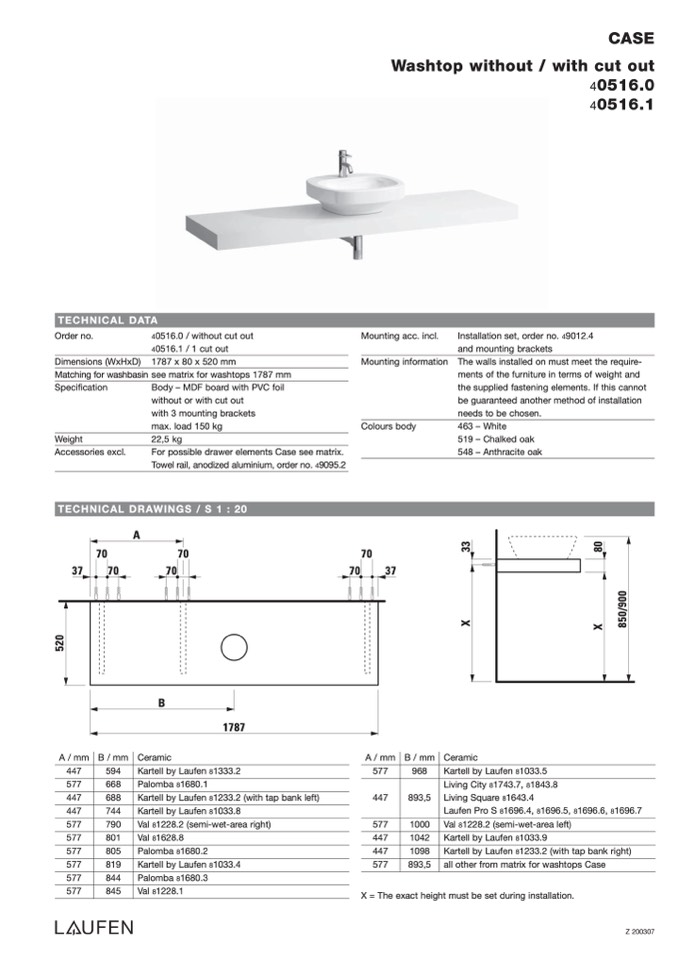

CASE

Washtop without / with cut out

40516.0

40516.1

TECHNICAL DRAWINGS / S 1 : 20

A

7

0

70

70

37

70

70

70

37

B

1787

A / mm

447

577

447

447

577

577

577

577

577

577

B / mm

Ceramic

Kartell by Laufen 81333.2

Palomba 81680.1

Kartell by Laufen 81233.2 (with tap bank left)

Kartell by Laufen 81033.8

Val 81228.2 (semi-wet-area right)

Val 81628.8

Palomba 81680.2

Kartell by Laufen 81033.4

Palomba 81680.3

Val 81228.1

A / mm

577

447

577

447

447

577

B / mm

Ceramic

Kartell by Laufen 81033.5

Living City 81743.7, 81843.8

Living Square 81643.4

Laufen Pro S 81696.4, 81696.5, 81696.6, 81696.7

Val 81228.2 (semi-wet-area left)

Kartell by Laufen 81033.9

Kartell by Laufen 81233.2 (with tap bank right)

all other from matrix for washtops Case

594

668

688

744

790

801

805

819

844

845

968

893,5

1000

1042

1098

893,5

X = The exact height must be set during installation.
