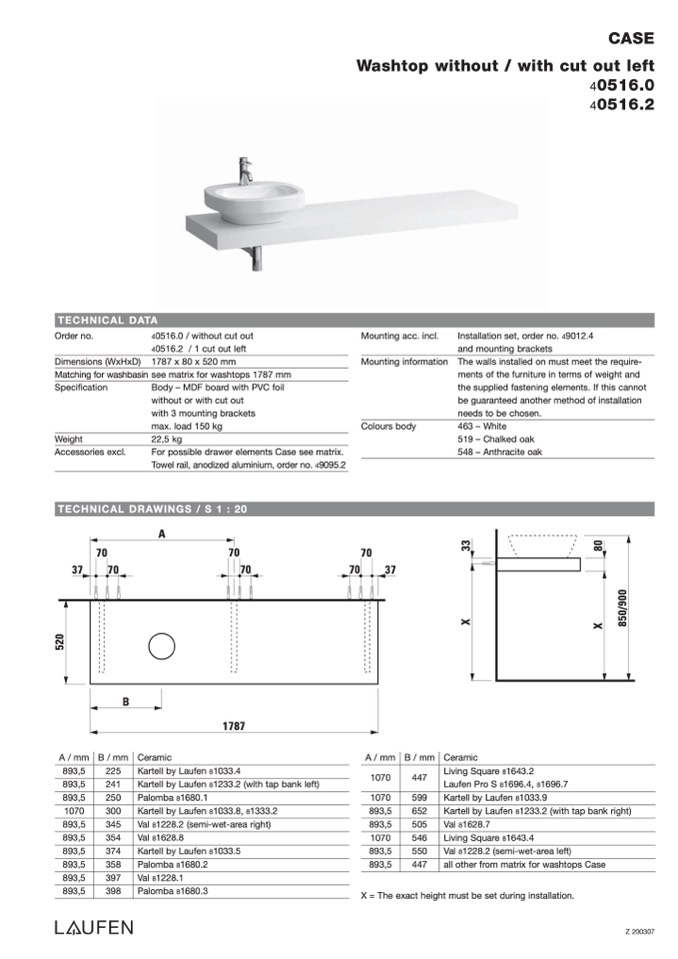

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0516.0 / without cut out

4

0516.2 / 1 cut out left

1787 x 80 x 520 mm

see matrix for washtops 1787 mm

Body – MDF board with PVC foil

without or with cut out

with 3 mounting brackets

max. load 150 kg

22,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Mounting acc. incl.

Mounting information

Colours body

Installation set, order no. 49012.4

and mounting brackets

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Washtop without / with cut out left

40516.0

40516.2

TECHNICAL DRAWINGS / S 1 : 20

A

70

70

70

37

70

70

70

37

B

1787

A / mm

893,5

893,5

893,5

1070

893,5

893,5

893,5

893,5

893,5

893,5

B / mm

Ceramic

Kartell by Laufen 81033.4

Kartell by Laufen 81233.2 (with tap bank left)

Palomba 81680.1

Kartell by Laufen 81033.8, 81333.2

Val 81228.2 (semi-wet-area right)

Val 81628.8

Kartell by Laufen 81033.5

Palomba 81680.2

Val 81228.1

Palomba 81680.3

A / mm

1070

1070

893,5

893,5

1070

893,5

893,5

B / mm

Ceramic

Living Square 81643.2

Laufen Pro S 81696.4, 81696.7

Kartell by Laufen 81033.9

Kartell by Laufen 81233.2 (with tap bank right)

Val 81628.7

Living Square 81643.4

Val 81228.2 (semi-wet-area left)

all other from matrix for washtops Case

225

241

250

300

345

354

374

358

397

398

447

599

652

505

546

550

447

X = The exact height must be set during installation.
