TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Weight

Mounting acc. incl.

4

1100.0 / without cut out

1170 x 13 (48) x 520 mm

Body – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

without cut out

with 2 mounting brackets

max. load 150 kg

14,0 kg

Installation set, order no. 49052.2

and mounting brackets, order no. 49052.3,

4

9052.4

Mounting information

Colours

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

100 – White matt

101 – Light walnut

103 – Dark elm

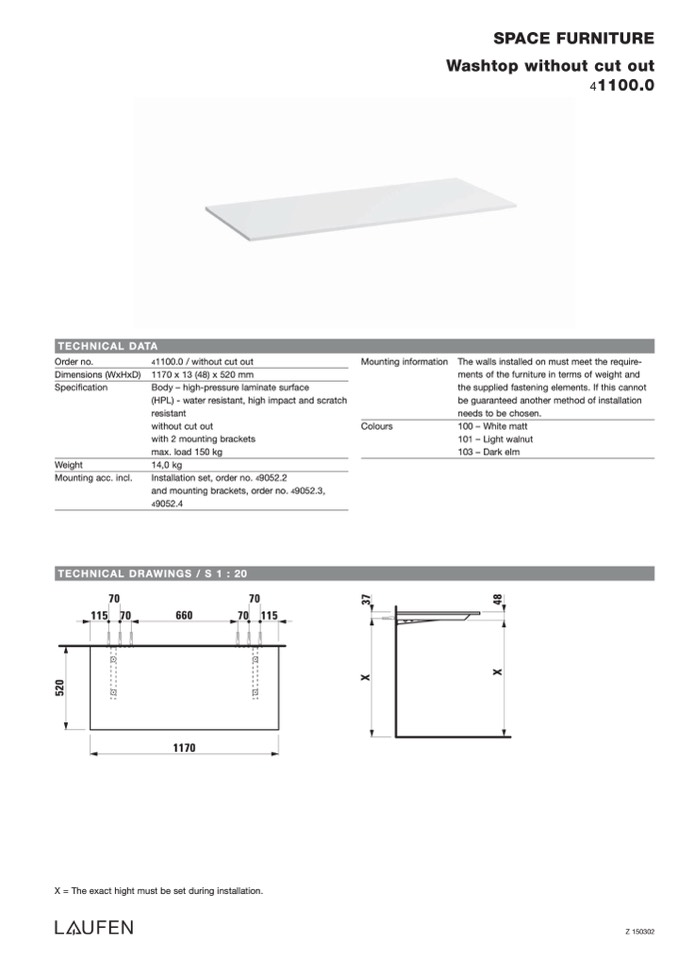

SPACE FURNITURE

Washtop without cut out

41100.0

TECHNICAL DRAWINGS / S 1 : 20

70

70

115 70

660

70 115

1170

X = The exact hight must be set during installation.

Z 150302

5

2

0

X

3

7

X

4

8
