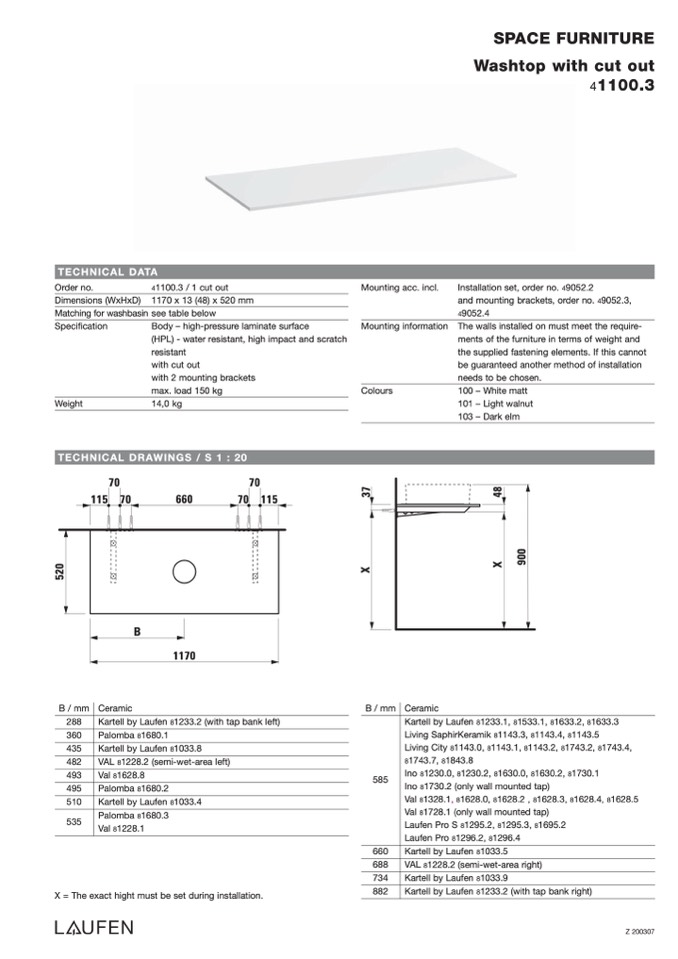

41100.3
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for washbasin
Specification
Weight
4
1100.3 / 1 cut out
1170 x 13 (48) x 520 mm
see table below
Body – high-pressure laminate surface
(HPL) - water resistant, high impact and scratch
resistant
with cut out
with 2 mounting brackets
max. load 150 kg
14,0 kg
Mounting acc. incl.
Mounting information
Installation set, order no. 49052.2
and mounting brackets, order no. 49052.3,
4
9052.4
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
100 – White matt
101 – Light walnut
103 – Dark elm
TECHNICAL DRAWINGS / S 1 : 20
Colours
70
115 70
660
70
70 115
B
1170
B / mm
288
360
435
482
493
495
510
535
X = The exact hight must be set during installation.
Ceramic
Kartell by Laufen 81233.2 (with tap bank left)
Palomba 81680.1
Kartell by Laufen 81033.8
VAL 81228.2 (semi-wet-area left)
Val 81628.8
Palomba 81680.2
Kartell by Laufen 81033.4
Palomba 81680.3
Val 81228.1
B / mm
585
660
688
734
882
Ceramic
Kartell by Laufen 81233.1, 81533.1, 81633.2, 81633.3
Living SaphirKeramik 81143.3, 81143.4, 81143.5
Living City 81143.0, 81143.1, 81143.2, 81743.2, 81743.4,
8
1743.7, 81843.8
Ino 81230.0, 81230.2, 81630.0, 81630.2, 81730.1
Ino 81730.2 (only wall mounted tap)
Val 81328.1, 81628.0, 81628.2 , 81628.3, 81628.4, 81628.5
Val 81728.1 (only wall mounted tap)
Laufen Pro S 81295.2, 81295.3, 81695.2
Laufen Pro 81296.2, 81296.4
Kartell by Laufen 81033.5
VAL 81228.2 (semi-wet-area right)
Kartell by Laufen 81033.9
Kartell by Laufen 81233.2 (with tap bank right)
Z 200307
5
2
0
X
3
7
X
4
8
9
0
0
