TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

4

1100.1 / 1 cut out left

1170 x 13 (48) x 520 mm

see table below

Body – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

with cut out

with 2 mounting brackets

max. load 150 kg

14,0 kg

Mounting acc. incl.

Mounting information

Installation set, order no. 49052.2

and mounting brackets, order no. 49052.3,

4

9052.4

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

100 – White matt

101 – Light walnut

103 – Dark elm

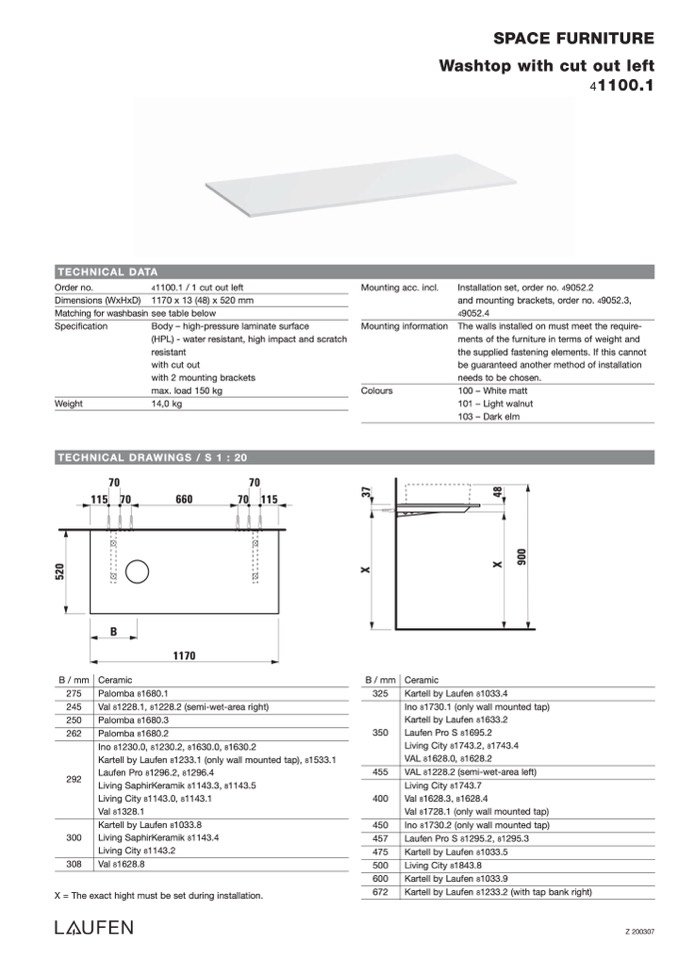

SPACE FURNITURE

Washtop with cut out left

41100.1

Colours

TECHNICAL DRAWINGS / S 1 : 20

70

115 70

660

70

70 115

B

1170

B / mm

275

245

250

262

292

300

308

Ceramic

Palomba 81680.1

Val 81228.1, 81228.2 (semi-wet-area right)

Palomba 81680.3

Palomba 81680.2

Ino 81230.0, 81230.2, 81630.0, 81630.2

Kartell by Laufen 81233.1 (only wall mounted tap), 81533.1

Laufen Pro 81296.2, 81296.4

Living SaphirKeramik 81143.3, 81143.5

Living City 81143.0, 81143.1

Val 81328.1

Kartell by Laufen 81033.8

Living SaphirKeramik 81143.4

Living City 81143.2

Val 81628.8

B / mm

325

350

455

400

450

457

475

500

600

672

Ceramic

Kartell by Laufen 81033.4

Ino 81730.1 (only wall mounted tap)

Kartell by Laufen 81633.2

Laufen Pro S 81695.2

Living City 81743.2, 81743.4

VAL 81628.0, 81628.2

VAL 81228.2 (semi-wet-area left)

Living City 81743.7

Val 81628.3, 81628.4

Val 81728.1 (only wall mounted tap)

Ino 81730.2 (only wall mounted tap)

Laufen Pro S 81295.2, 81295.3

Kartell by Laufen 81033.5

Living City 81843.8

Kartell by Laufen 81033.9

Kartell by Laufen 81233.2 (with tap bank right)

X = The exact hight must be set during installation.
