TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Spout length

Flow rate

Acoustic class

3.2370.7.004.145.1 / with accessories

3.2370.7.004.400.1 / without accessories

137-169 mm

1/2“

1/2“ (DN15)

155 mm

spout: 21.1 l/min (3 bar)

shower: 14.3 l/min (3 bar)

spout: II/-

shower: IIB

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

CURVEPRIME

Thermostatic bath mixer

with accessories

3.2370.7.004.145.1

without accessories

3.2370.7.004.400.1

thermostatic bath mixer

temperature handle with safety button 38° C

flow rate handle with built-in water-saver button

(50%)

automatic hot water shut-off in the event of a

cold water supply failure

fixed spout

automatic diverter

intrinsically safe against backflow

order no. 3.2370.7.004.145.1 – complete with

flexible hose 1800 mm and handshower Comfort Tre

wall connections

chrome

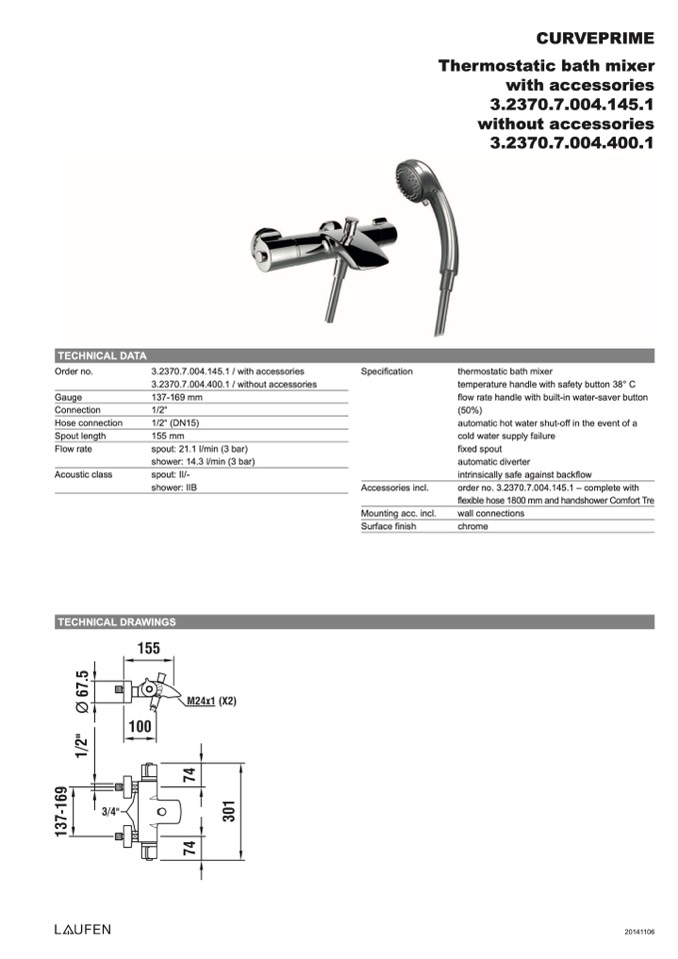

TECHNICAL DRAWINGS

20141106
