TECHNICAL DATA

Order no.

Flow rate

Acoustic class

Specification

3.3170.6.004.000.1

Simibox Light:

19.2 l/min (3 bar)

Simibox Standard:

18.1 l/min (3 bar)

Simibox Light:

IC

Simibox Standard:

IA

set for concealed bath/shower mixer Simibox

40 mm Ecototal cartridge with flow and

temperature brake

automatic diverter

Mounting acc. excl.

either Simibox Standard, concealed system for bath

and shower mixer, order no. 3.7898.0.000.000.1

or Simibox Light, concealed system for bath and

shower mixer:

with stop valve: order no. 3.7898.0.000.100.1

without stop valve: order no. 3.7898.0.000.101.1

Simibox, mounting aid for concealed bath and

shower mixer, order no. 3.7998.0.003.000.1

Simibox, flange set, order no. 3.7998.0.000.500.1

Simibox, extension set

L = 25 mm – order no. 3.7998.0.000.050.1

L = 50 mm – order no. 3.7998.0.000.060.1

chrome

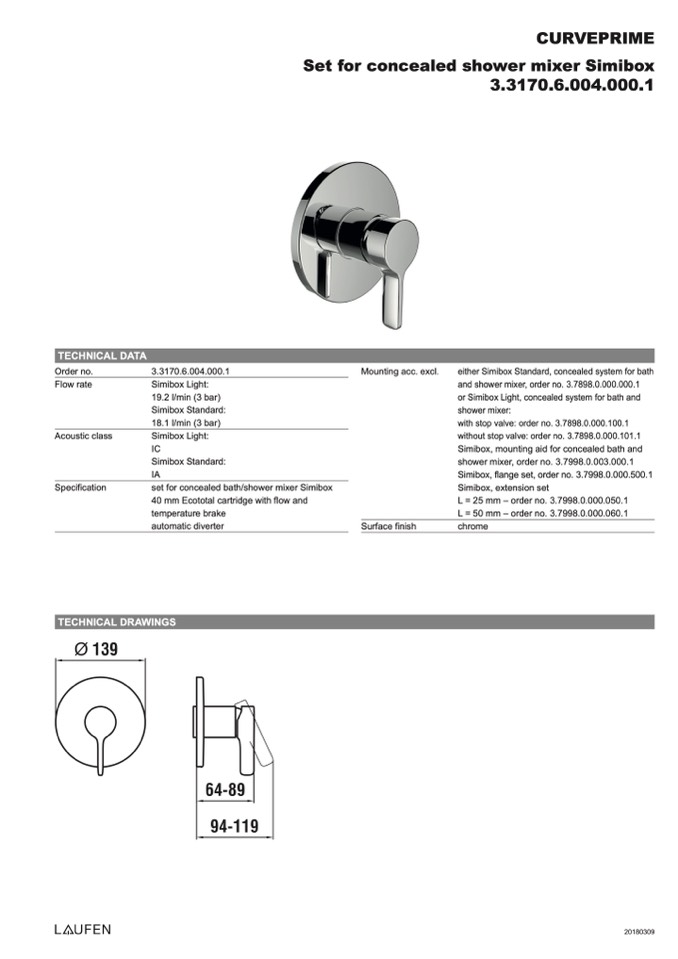

CURVEPRIME

Set for concealed shower mixer Simibox

3.3170.6.004.000.1

TECHNICAL DRAWINGS

Surface finish

20180309
