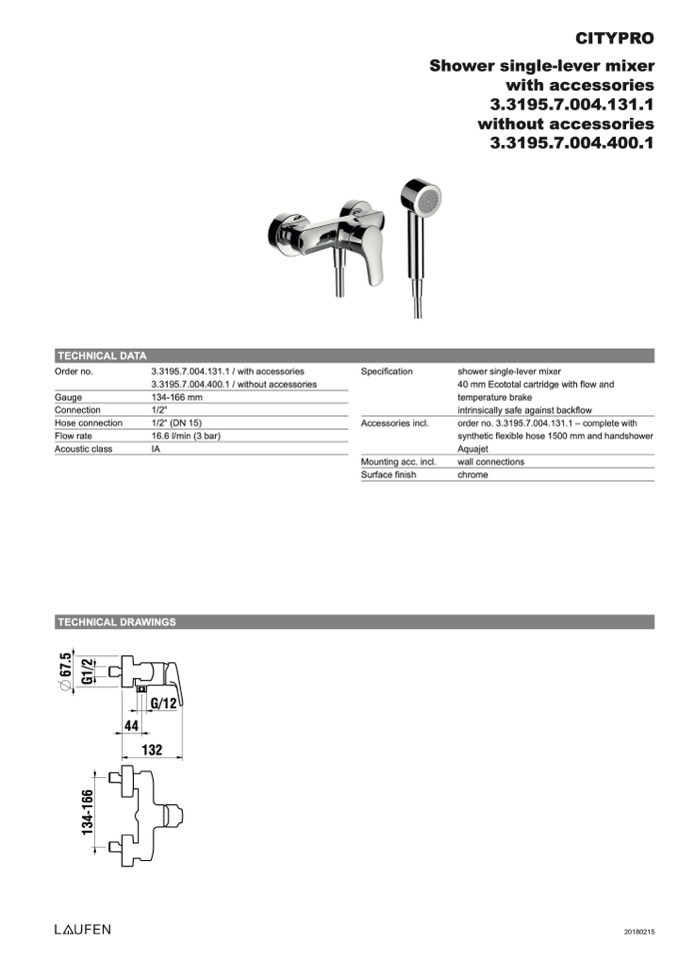

CITYPRO

Shower single-lever mixer

with accessories

3.3195.7.004.131.1

without accessories

3.3195.7.004.400.1

TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Flow rate

Acoustic class

3.3195.7.004.131.1 / with accessories

3.3195.7.004.400.1 / without accessories

134-166 mm

1/2“

1/2“ (DN 15)

16.6 l/min (3 bar)

IA

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

shower single-lever mixer

40 mm Ecototal cartridge with flow and

temperature brake

intrinsically safe against backflow

order no. 3.3195.7.004.131.1 – complete with

synthetic flexible hose 1500 mm and handshower

Aquajet

wall connections

chrome

TECHNICAL DRAWINGS

G/12

44

132

20180215

6

7

.

5

1

3

4

-

1

6

6

G

1

/

2
