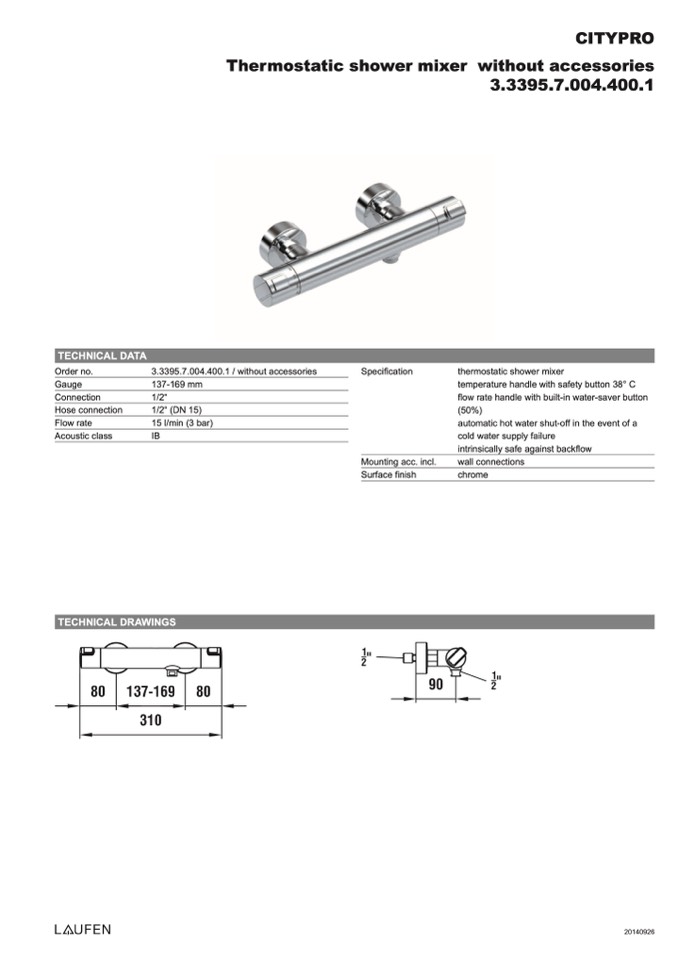

TECHNICAL DATA
Order no.
Gauge
Connection
Hose connection
Flow rate
Acoustic class
3.3395.7.004.400.1 / without accessories
137-169 mm
1/2“
1/2“ (DN 15)
15 l/min (3 bar)
IB
Specification
Mounting acc. incl.
Surface finish
thermostatic shower mixer
temperature handle with safety button 38° C
flow rate handle with built-in water-saver button
(50%)
automatic hot water shut-off in the event of a
cold water supply failure
intrinsically safe against backflow
wall connections
chrome
TECHNICAL DRAWINGS
20140926
