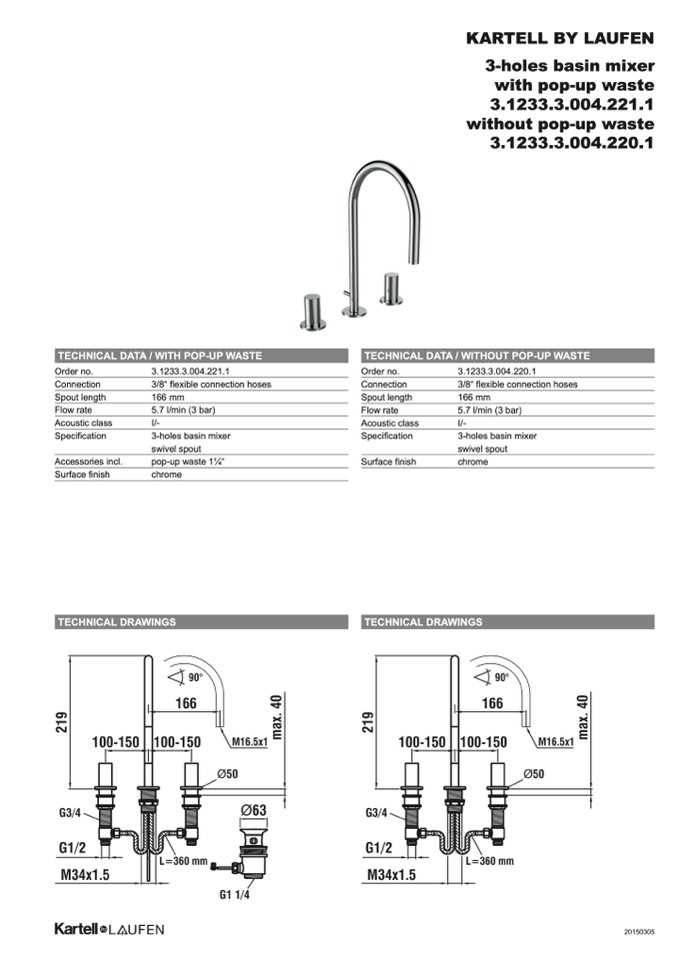

TECHNICAL DATA / WITH POP-UP WASTE

KARTELL BY LAUFEN

3-holes basin mixer

with pop-up waste

3.1233.3.004.221.1

without pop-up waste

3.1233.3.004.220.1

TECHNICAL DATA / WITHOUT POP-UP WASTE

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Accessories incl.

Surface finish

3.1233.3.004.221.1

3/8“ flexible connection hoses

166 mm

5.7 l/min (3 bar)

I/-

3-holes basin mixer

swivel spout

pop-up waste 11⁄4“

chrome

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Surface finish

3.1233.3.004.220.1

3/8“ flexible connection hoses

166 mm

5.7 l/min (3 bar)

I/-

3-holes basin mixer

swivel spout

chrome

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

20150305
