TECHNICAL DATA

Order no.

Connection

Spout length

Flow rate

Acoustic class

3.1233.3.090.220.1

3/8“ flexible connection hoses

166 mm

5.7 l/min (3 bar)

I/-

Specification

Surface finish

3-holes basin mixer

swivel spout

PVD inox look

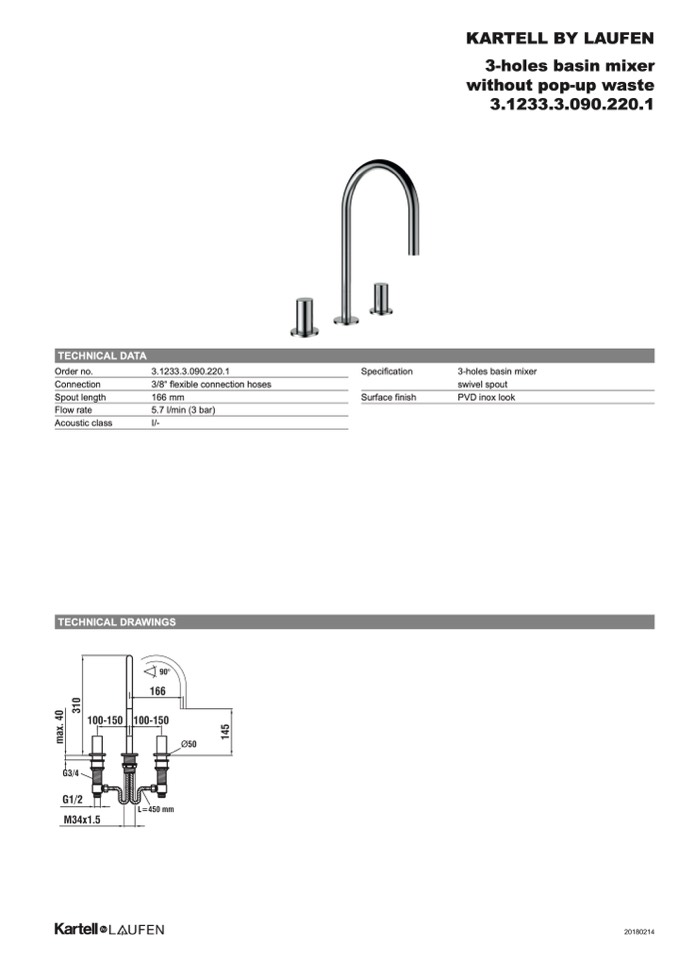

TECHNICAL DRAWINGS

KARTELL BY LAUFEN

3-holes basin mixer

without pop-up waste

3.1233.3.090.220.1

20180214
